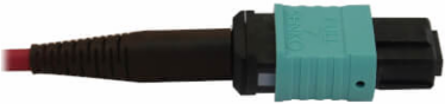

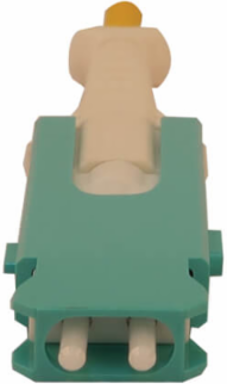

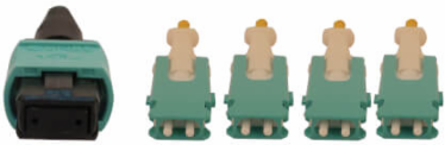

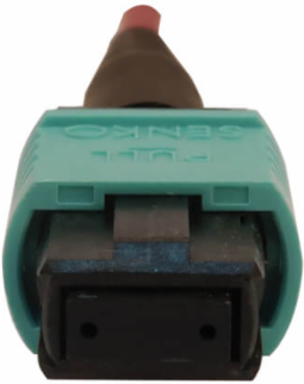

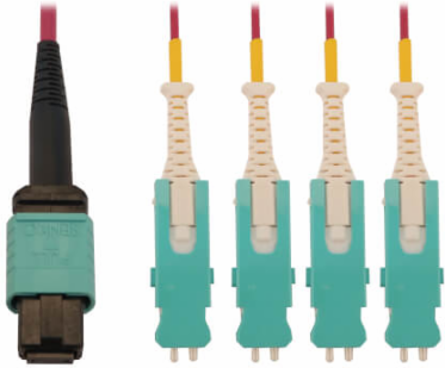

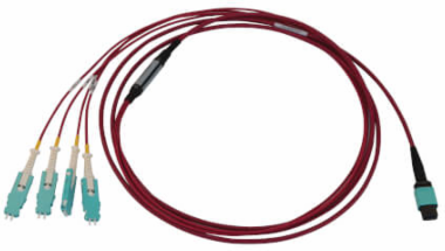

Tripp Lite N84502M4SMG Fiber Optic Cable, MTP/MPO-PC to 4x Duplex SN-PC, 12F Multimode OM4, LSZH, Magenta, 2 m
- MPN: N84502M4SMG
- UPC: 037332274670
- PPN: TRP-N845-02M-4S-MG
CAD
$449.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM4 Breakout Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex SN-PC F/M), LSZH, Magenta, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 2 m (6.6 ft)
- Side A - Connector 1
- 12F MPO (Female)
- Optical Port
- MPO/MTP; SN
- Breakout
- Yes
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 245.0
Number of Fibers12
Side B - Connector 1(4) SN Duplex (Male)
Endface PolishPC
Cable Outer Diameter3.0 mm
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Material
- Technology
- Multimode
- Connector Color
- Aqua; Black; White
- Cable Jacket Rating
- OFNR
Cable Jacket ColorMagenta
Cable Jacket MaterialLSZH
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5dB
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5dB
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
