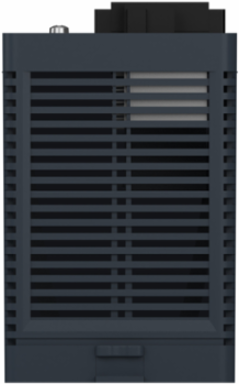

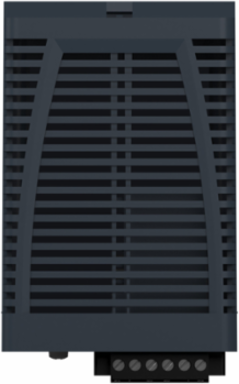

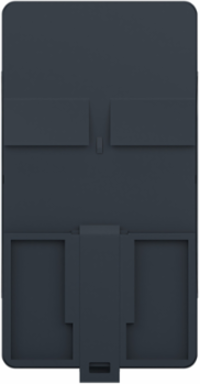

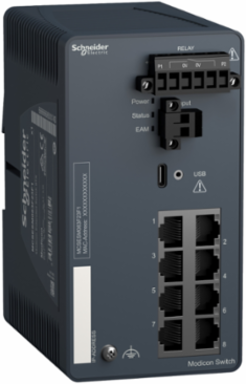

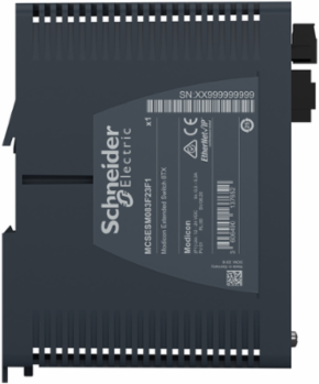

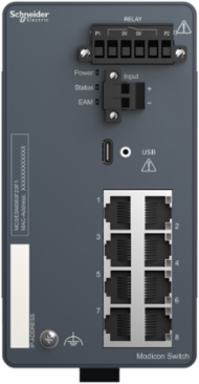

Schneider Electric MCSESM083F23F1 Modicon Extended Managed Switch, 8 ports for copper
Schneider Electric MCSESM083F23F1 Modicon Extended Managed Switch, 8 ports for copper
- MPN: MCSESM083F23F1
- PPN: SCH-MCSESM083F23F1
- UNSPSC: 43222612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3050.52/ EA
Description
Modicon Extended Managed Switch, 8 ports for copper
Features
- High performance and robust hardware with more flexibility and features give customers more options
- Provides simple connectivity for multiple Ethernet devices
- Enhanced native cyber secure features help to protect and transmit data across the network at the high level of security
- High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
- Easy configuration and administration process via HTML5 based web pages
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, external memory removed, temperature threshold
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Conformance Attributes
- Product Certifications
- CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, BV, FCC part 15 class A, CCC Ex
- Certifications
- CE/cULus/RCM/UKCA, EAC, CSA C22-2 No 213, DNV, LR/BV, ATEX/UKEX
StandardsIEC 61850-3, IEC 62443-4-2 SL 1, UL 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1, IEC 61850-3, IEC 62443-4-2, EN 50121-4
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Redundancy
- HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, dual RSTP, redundant coupling protocol
- Local Publishable Date
- 2026-01-12
- Serviceability
- No
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Ethernet Cabling System
- TF switches
- Package Weight Lbs
- 664.000 g
- Power Consumption In W
- 6 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- No
- Sustainable Packaging
- No
- Us Rated Supply Voltage2
- 12...24 V
- Stocking Flag
- Y
- Pep Code
- ENVPEP2003018EN
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
Local Data StatusPublishable
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003018EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Port Ethernet10/100BASE-TX - 8 copper cable
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon Networking
Supply Voltage Limits9.6-32 V DC SELV
Transmission Support Mediumtwisted shielded pairs cable CAT 5E copper cable
Medium DescModicon Extended Managed Switch, 8 ports for copper
Product Kit IdentifierN
Number Of Rj45 Port8 10/100 Mbps
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003018EN
- IP Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2003018EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018EN
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 117.6 mm
