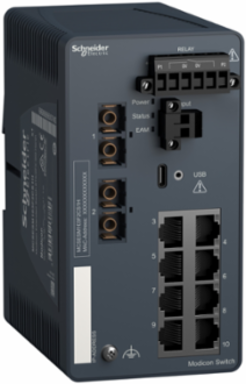

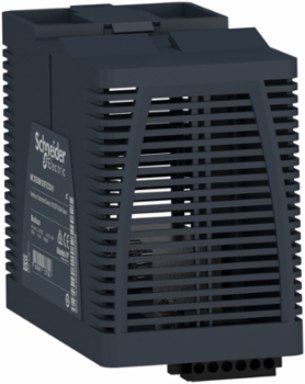

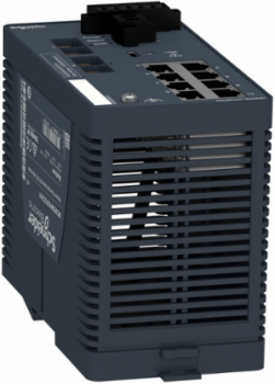

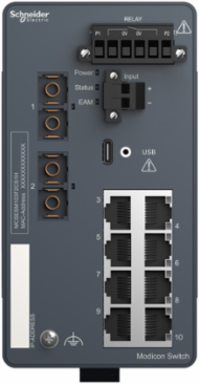

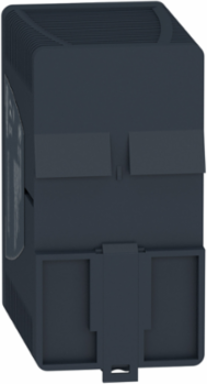

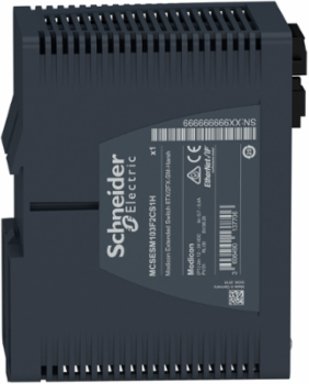

Schneider Electric MCSESM103F2CS1H Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic single-mode - Harsh
- MPN: MCSESM103F2CS1H
- PPN: SCH-MCSESM103F2CS1H
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic single-mode - Harsh
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, United States
Depth117.6 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 30 km 9/125 µm
Complementary Attributes
- Integrated Connection Type
- duplex SC fiber optic, shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Port Ethernet
- 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 8 copper cable
- Transmission Support Medium
- single mode optical fiber fiber optic, twisted shielded pairs cable CAT 5E copper cable
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09091829832911624, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.010805612309156817, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 686 kg CO2 eq., 685.851519054951
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2137
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Attenuation
- 0-16 dB 9/125 µm)
- Ethernet Cabling System
- TF switches
- Number Of Port
- 10
- Number Of Uplink Port
- 2 F/O single mode 100 Mbps
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon Networking
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2003018_V2
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 142.8 mm
- [Us] Rated Supply Voltage
- 12...24 V
- Package Weight(Lbs)
- 816.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
RedundancyHiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, dual RSTP, redundant coupling protocol
Certificate AgencyCE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, BV, FCC part 15 class A, CCC Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.0366068891176652
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.4212636195715156
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port8 10/100 Mbps
Power Consumption In W8 W
Product Or Component TypeEthernet TCP/IP managed switch
Protective Treatmentconformal coating
ReturnabilityNo
Supply Voltage Limits9.6-32 V DC SELV
Total Lifecycle Carbon Footprint690 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh700.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal73 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-+70 °C, -40-+70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 690.4111134742785
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
