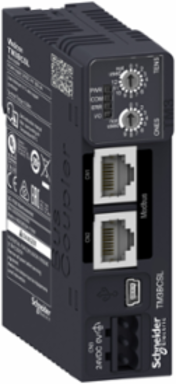

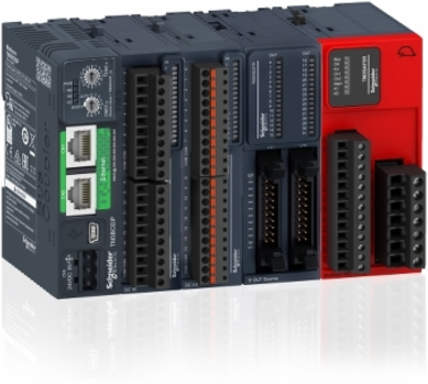

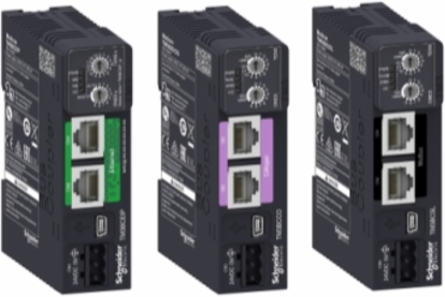

Schneider Electric TM3BCSL Modicon TM3 Bus Coupler Module, 27 mm Wide, IP20, Modbus Serial
- MPN: TM3BCSL
- PPN: SCH-TM3BCSL
CAD
$333.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon TM3 Bus Coupler Module from Schneider Electric provides a compact solution for integrating Modbus Serial communication into your automation systems. With its slim 27 mm width, this module is designed to optimize space while maintaining high reliability and ease of use, making it suitable for various industrial applications. Rated at IP20, it ensures protection from dust and foreign objects, further enhancing its versatility in diverse environments. This product stands out for its ability to seamlessly connect devices, facilitating efficient data exchange within your control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Indonesia, Singapore, United States
Depth70 mm
Communications & Management Attributes
- Communication Network Type
- Modbus
- Communication Service
- Modbus slave device profile
Communication Port ProtocolModbus serial
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Local Signalling
- 1 LED green/red PWR (System Status), 1 LED green/red COM (Run), 1 LED green/red ERR (Error), 1 LED green/red I/O status
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0215463579, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0004487807
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 155 kg CO2 eq., 154.51
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Use Carbon Footprint
- 154.51
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 0.8 A 24 V DC internal supply maximum 7 expansion modules
- Fixing Mode
- by clipping locks (rail)by screws (mounting plate)
- Network Type
- DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Software Version
- EIME v5.7.0.3
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Topology
- daisy chain
- Transmission Rate
- 1.2...115.2 kbit/s
- Web Services
- web server, USB
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Potential Separation Present
- false
- Radio Standard Egprs
- false
- Pep Code
- ENVPEP1712005EN
- Pep Verification Date
- 2018-06-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To communicate I/Os data coming from TM3 I/O Modules connected on the right side of the TM3 Bus Controller, up to the main controller via the Fieldbus Ethernet at 3.6 W 100% of the time.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 27 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- true
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 0.6445
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1753.8
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 560.23
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2693.5
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 392.4
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 392.4
- Customs Code
- 8517620090
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyCE, cULus, EAC, RCM, UKCA, EU-RO MR
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0654188944, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.980616518
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1712005EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2010
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Exchange Modehalf duplex
Front Installation Possiblefalse
Number Of Hw Interfaces Industrial Ethernet1
Product Or Component TypeI/O distributed module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Total Lifecycle Carbon Footprint158 kg CO2 eq.
Vibration Resistance3M4 on 35 mm DIN rail
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage20.4-28.8 V
System Accessorytrue
Radio Standard Ltefalse
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal96.5 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)167.0 g
Warranty (In Months)18
Air Pollution (M3) Operational Energy Use [B6]6650.1
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]154.51
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]576.08
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3085.9
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2693.5
Water Pollution (M3) Operational Energy Use [B6]6375.6
Environment Attributes Main
- Product Compatibility
- logic controller, motion controller
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -10-60 °C-10-60 °C
- Circularity Profile
- ENVEOLI1712005EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1712005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint157.578030551
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1712005EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-06-01
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- I/O distributed module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
