Schneider Electric TM172DGRP Modicon M172 Display Module, 240 x 140 Pixels, 160 mm Height
- MPN: TM172DGRP
- PPN: SCH-TM172DGRP
CAD
$292.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

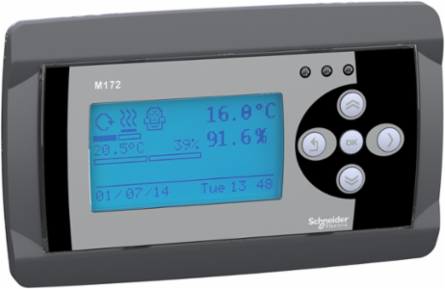

This display belongs to Modicon M171/M172 range of HVAC controllers. This display module features a backlit LCD display with 240 x 140 pixels resolution. The number of keys in the display module is 5. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It has a monochrome backlit LCD screen with 240 x 140 pixels reolution. It embeds a real time clock. Its dimensions are 90mm (width) x 27mm (depth) x 160mm (height). It weighs 0.197kg. It is remote display for blind Modicon M172 logic controllers. This product is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172 controllers is the best choice for complete automation solutions for HVAC machines. Modicon M171 and M172 logic controllers are designed for HVAC OEMs and help them to maximize profitability and energy efficiency.
Features
- Featuring a monochrome backlit LCD screen with a crisp 240 times 140 pixel resolution, this graphic module provides clear, highly detailed visual readouts of complex HVAC metrics. It allows facility managers and technicians to view multi-line diagnostics, sensor trends, and alarm notifications instantly, eliminating the operational blindness caused by basic text-only interface
- Purpose-built for seamless integration, the TM172DGRP is fully dedicated to the Modicon M172 Optimized and M172 Performance logic controller lines. This tailored hardware architecture provides plug-and-play communication out of the box, saving automation programmers hours of troubleshooting, custom mapping, and protocol configuration during commission.
- Outfitted with 5 rugged, mechanical navigation keys on the front bezel, this display ensures responsive menu scrolling, parameter adjustment, and alarm acknowledgement. The high-rebound buttons are designed to provide clear tactile feedback, making it simple for field electricians and service technicians to modify climate setpoints or schedule overrides even when wearing heavy utility glove
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Finland, France, Italy, United States |
|---|
| Depth | 27 mm |
|---|
Physical Attributes
| Color | Gray |
|---|
| Display Color | monochrome |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.08035380843748394, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.03023278443905306, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.79750120154093 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Display Type | Backlit LCD |
| Marking | CE |
| Power Consumption In W | 2 W |
| Product Or Component Type | display module |
| Realtime Clock | with |
| Software Version | v6.2.4 |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2106011EN |
| Pep Verification Date | 2025-07-02 |
| Psr Version | No PSR |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Recyclability Potential In % | 1 |
| Width Nominal | 90 mm |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Package Weight(Lbs) | 253.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.518571214186994 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 20 kg CO2 eq., 20.22880026474537 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2106011EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2102 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Resolution | 128 x 64 pixels |
| Local Signalling | 3 LEDs (green) |
| Number Of Key | 5 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M171/M172 |
| Returnability | Yes |
| Supply | external source |
| Total Lifecycle Carbon Footprint | 81 kg CO2 eq. |
| Upgradeability | Yes |
| Display Color | monochrome |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To display M171/M172 CPU's parameters for HVAC/R applications and a 100% of the time for 10 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 131.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 160 mm |
| Certificate Agency | cURus |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9031808085 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 80.65545927334983 |
| Environmental Disclosure | ENVPEP2106011EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | logic controller M171 performance |
| Pep Code | ENVPEP2106011EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2106011EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-07-02 |
| Psr Version | No PSR |
General Attributes
| Product Or Component Type | display module |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
