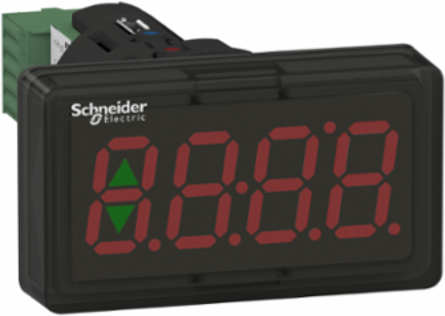

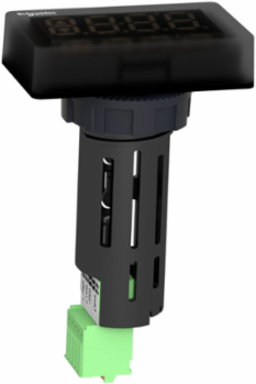

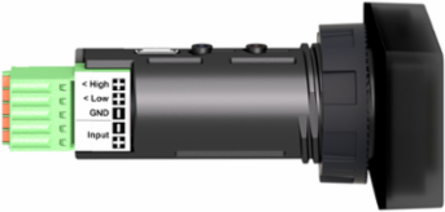

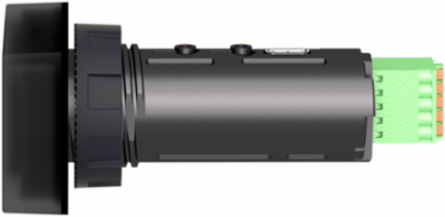

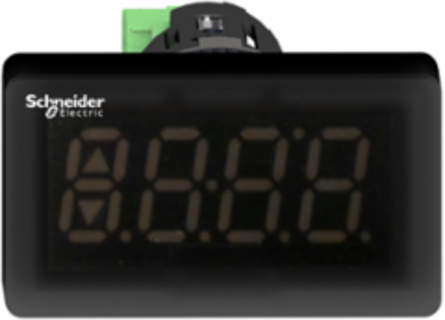

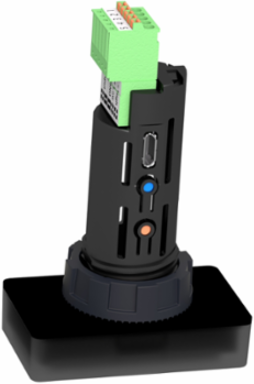

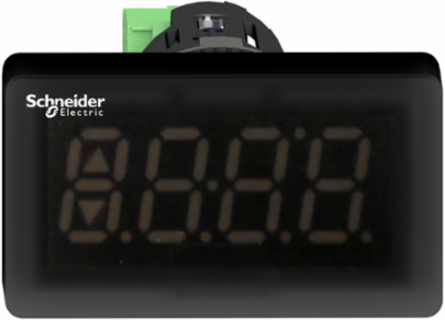

Schneider Electric XBH1AA0R4 Display Module, Harmony XB5, 22mm, IP65, 4-Digit Red LED, 4-20 mA Input
- MPN: XBH1AA0R4
- PPN: SCH-XBH1AA0R4
CAD
$102.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States

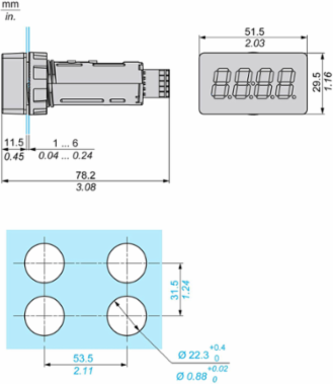

Depth78.2 mm
Physical Attributes
- Display Color
- red
Complementary Attributes
- Maximum Voltage Drop
- 6 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Counting Capacity
- -999...9999, -999...9999
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0998950169
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.7215410266
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Digits
- 4 - 14 mm
- Flame Retardance
- UL94-V1
- Mounting Diameter
- 22.5 mm
- Product Or Component Type
- display module
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.3 N.m +/- 0.2 N.m11.5 lb.in +/- 1.8 lb.in
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Display Color
- red
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The product uses 0.72W of power when it is active and 0.6W of power when it is in standby mode for 99.86% of the time over the period of 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 10.512
- Recyclability Potential In %
- 2
- Width Nominal
- 51.5 mm

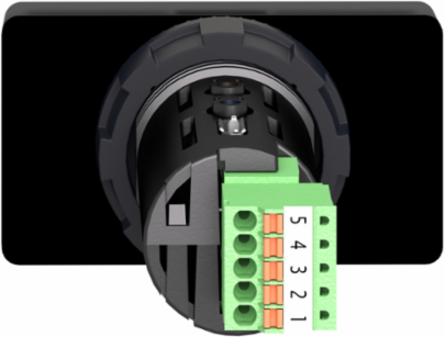

- Connections - Terminals
- spring terminals, 1 x 0.2...1 mm² 24 AWG...17 AWG)
- Package Weight(Lbs)
- 70.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0233962795, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0198923979, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 kg CO2 eq., 5.0673923797
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303007EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Brightnessfixed
Display Type7 segments LED
Housing Materialplastic
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XB5
Software Versionv5.9.4
Temperature Drift50 ppm/°C
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2303007EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal29.5 mm
Certificate AgencyIEC 61326-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531200020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 6.9321171006
- Environmental Disclosure
- ENVPEP2303007EN
- Ip Degree Of Protection
- IP65 IEC 60529 front panel)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2303007EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- display module
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Output Attributes
- Discrete Output Current
- 0.5 A
- Solid State Output Type
- 2 x power MOSFET
Discrete Output Voltage30 V DC
Input Attributes
- Analogue Input Range
- 4...20 mA DC
