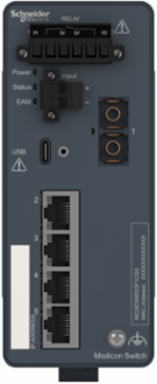

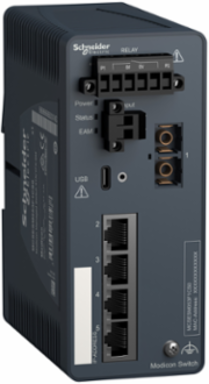

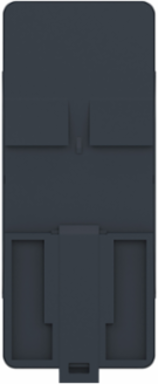

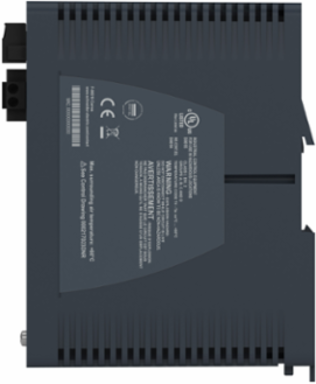

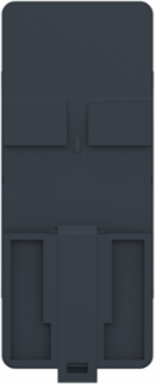

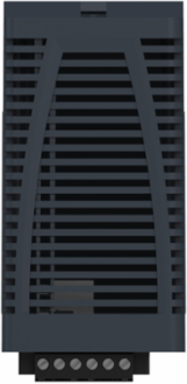

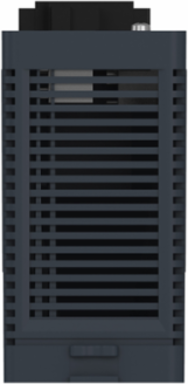

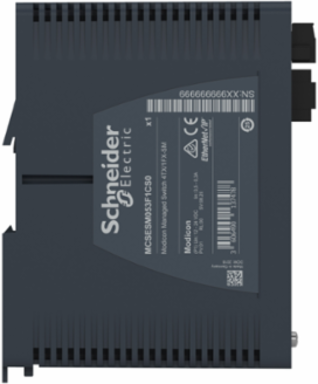

Schneider Electric MCSESM053F1CS0 Modicon Managed Network Switch, 4 Copper & 1 Fiber Port, IP30
- MPN: MCSESM053F1CS0
- PPN: SCH-MCSESM053F1CS0
CAD
$2679.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This managed network switch from Schneider Electric is designed to enhance the connectivity of industrial networks with its robust configuration, featuring four copper ports and one fiber port. The Modicon MCSESM053F1CS0 ensures reliable data transmission and optimal network performance, making it a crucial component for demanding industrial environments. IP30-rated, it offers protection against dust and solid objects, ensuring durability and longevity in various operational settings. This switch is an essential tool for businesses seeking to streamline their network architecture while maintaining high standards of performance and security.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117.6 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 32.5 km 9/125 µm
Complementary Attributes
- Integrated Connection Type
- duplex SC fiber opticshielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Port Ethernet
- 100BASE-FX - 1 fiber optic, 10/100BASE-TX - 4 copper cable
- Certificate Agency
- CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.8 kg CO2 eq., 0.7638156025077533
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.5209310881053275
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- removable connector 6 ways power supply
- Mounting Support
- 35 mm symmetrical DIN rail
- Number Of Rj45 Port
- 4 10/100 Mbps
- Power Consumption In W
- 6 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- No
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Total Lifecycle Carbon Footprint
- 518 kg CO2 eq.
- Pep Code
- ENVPEP2003018_V2
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 142.8 mm
- [Us] Rated Supply Voltage
- 12...24 V
- Package Weight(Lbs)
- 420.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification, RSPAN, SFLOW
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
RedundancyHiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
Carbon Footprint Of The Distribution Phase [A4]0.06699243034776986, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.007962030122536603, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]514 kg CO2 eq., 514.3886392912134
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2027
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Attenuation0-16 dB 9/125 µm)
Ethernet Cabling SystemTF switches
Number Of Port5
Number Of Uplink Port1 F/O single mode 100 Mbps
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon Networking
Software Versionv6.2.5-6
Sustainable PackagingNo
Transmission Support Mediumsingle mode optical fiber fiber optictwisted shielded pairs cable CAT 5E copper cable
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal57 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620020
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint517.7483404422968
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
