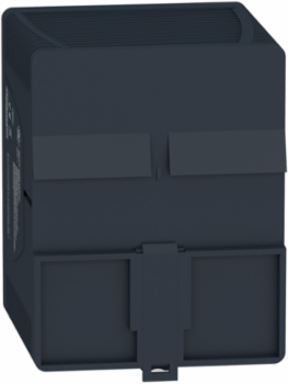

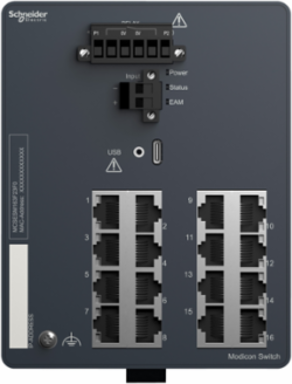

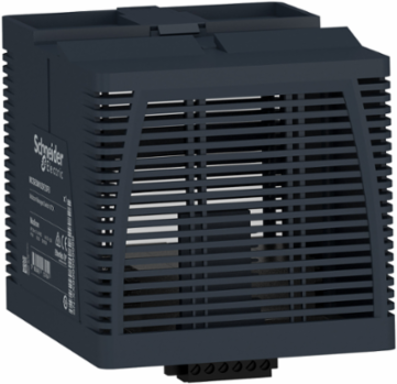

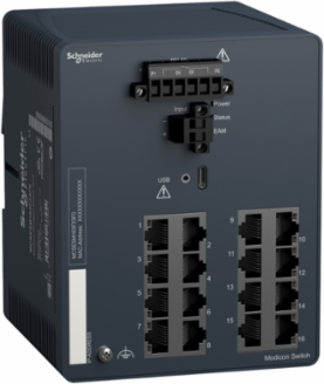

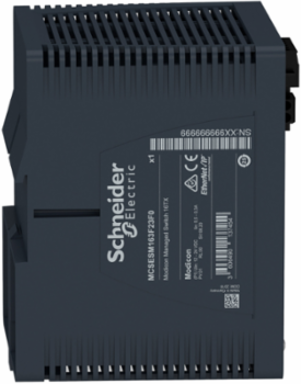

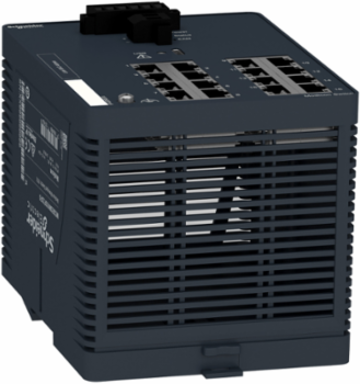

Schneider Electric MCSESM163F23F0 Modicon Managed Network Switch, 16 Ports for Copper, IP30, Power 10W
- MPN: MCSESM163F23F0
- PPN: SCH-MCSESM163F23F0
CAD
$2490.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for robust networking solutions, this managed network switch from Schneider Electric features 16 ports for copper connections, making it an ideal choice for industrial applications. With a compact design and a range of advanced functionalities, it supports various redundancy protocols such as HiPER ring and RSTP, ensuring reliable network performance even in demanding environments. The switch operates efficiently with a power consumption of just 10 W and is equipped with comprehensive diagnostic capabilities, including alarm outputs for power supply faults and temperature thresholds. Its IP30 rating and ability to operate in ambient temperatures ranging from 0 to 60 C make it suitable for a variety of settings, while the integrated cybersecurity features ensure secure data transmission.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, France, Mexico, United States
Depth117.6 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server, OPC UA
Alarm Output1 voltfree contact 1 A
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Redundancy
- HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ethernet Cabling System
- TF switches
- Number Of Port
- 16
- Port Ethernet
- 10/100BASE-TX - 16 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- Height Nominal
- 142.8 mm
- [Us] Rated Supply Voltage
- 12...24 V
- Package Weight(Lbs)
- 260.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification, RSPAN, SFLOW
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
Certificate AgencyCE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003019EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2137
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port16 10/100 Mbps
Power Consumption In W10 W
Product Or Component TypeEthernet TCP/IP managed switch
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2003019EN
Width Nominal108.8 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620020
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003019EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2003019EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2003019EN
Ip Degree Of ProtectionIP30
Packaging Without Single Use PlasticNo
Relative Humidity1-95 % non-condensing
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
