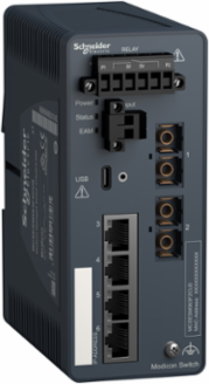

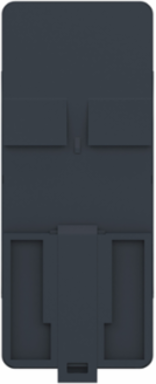

Schneider Electric MCSESM063F2CU0 network switch, Modicon Networking, managed, 4 ports for copper with 2 port for fiber optic, multimode
Schneider Electric MCSESM063F2CU0 network switch, Modicon Networking, managed, 4 ports for copper with 2 port for fiber optic, multimode
- MPN: MCSESM063F2CU0
- PPN: SCH-MCSESM063F2CU0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2572.78/ EA
Description
network switch, Modicon Networking, managed, 4 ports for copper with 2 port for fiber optic, multimode
Specifications
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Product Certifications
- CE || UL || RCM || DNV || ATEX
- Relative Humidity
- 1-95 % non-condensing
StandardsUL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1
Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Ip Degree Of ProtectionIP30
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2003018EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2003018EN
Complementary
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Height
- 142.8 mm
- Integrated Connection Type
- duplex SC fiber optic || shielded RJ45 copper cable
- Mounting Support
- 35 mm symmetrical DIN rail
- Communication Service
- TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection
- Alarm Output
- 1 voltfree contact 1 A
- Net Weight
- 0.42 kg
- Electrical Connection
- removable connector 6 ways power supply
- Function Available
- security status || alarms (Traps) || system information || report
- Ethernet Cabling System
- TF switches
- Local Signalling
- P1 P2 power supplies 1 dual colour LED green/yellow) || device status 1 dual colour LED green/red) || memory key status 1 dual colour LED green/yellow) || channel diagnostic 1 dual colour LED green/yellow)
- Diagnostics Run Time
- signal contact || self test || MAC notification
- Depth
- 117.6 mm
[Us] Rated Supply Voltage12...24 V
Alarm Functionpower supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed
Transmission Support Mediummultimode optical fiber fiber optic || twisted shielded pairs cable CAT 5E copper cable
Power Consumption In W7 W
MarkingCE || cULus || RCM
RedundancyHiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP
Attenuation0-11 dB 62.2/125 µm) || 0-8 dB 50/125 µm)
Maximum Number Of Switches In A Ring50
Ethernet Serviceconfiguration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
Supply Voltage Limits9.6-32 V DC SELV
Optic Fiber Length4 km 62.5/125 µm || 5 km 50/125 µm
Width57 mm
Specifications
- Maximum Number Of Switches In Cascade
- unlimited
- Port Ethernet
- 100BASE-FX - 2 fiber optic || 10/100BASE-TX - 4 copper cable
- Communication Port Protocol
- Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP
- Concept
- Transparent Ready
Range Of ProductModicon
Product Or Component TypeEthernet TCP/IP managed switch
Cybersecurityport hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner
