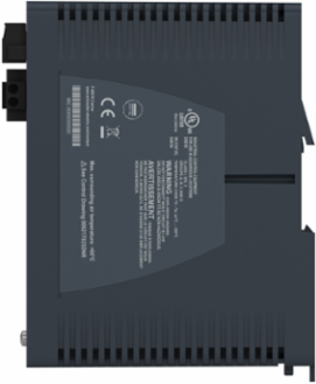

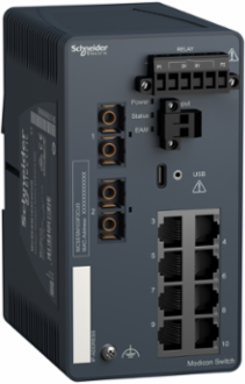

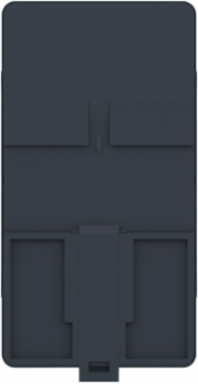

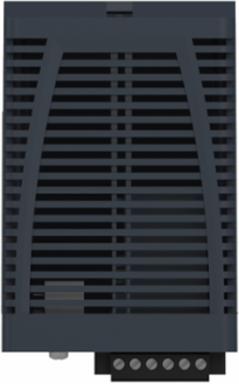

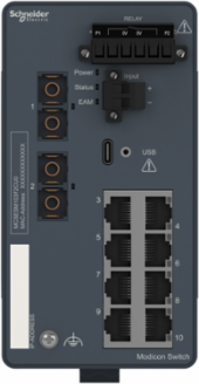

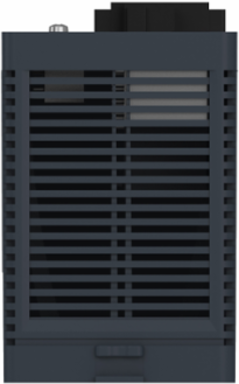

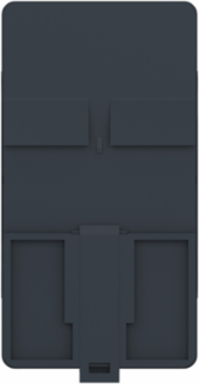

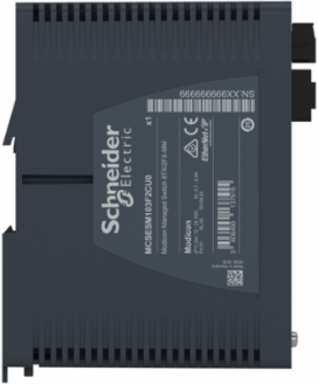

Schneider Electric MCSESM103F2CU0 Managed Network Switch, 8 Copper & 2 Fiber Optic Ports, IP30
- MPN: MCSESM103F2CU0
- PPN: SCH-MCSESM103F2CU0
CAD
$3896.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This managed network switch from Schneider Electric offers a robust solution for your networking needs with its combination of 8 copper and 2 fiber optic ports, ensuring flexibility and efficient data transmission. Designed with an IP30 rating, it provides reliable protection against dust and solid objects, making it suitable for industrial environments. Its managed capabilities allow for advanced network management, enabling better control and optimization of your network resources. This switch is an essential component for businesses looking to enhance connectivity and improve overall network performance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117.6 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 4 km 62.5/125 µm5 km 50/125 µm
Complementary Attributes
- Integrated Connection Type
- duplex SC fiber opticshielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
- Diagnostics Run Time
- signal contact, self test, MAC notification, RSPAN, SFLOW
- Function Available
- security status, alarms (Traps), system information, report
- Marking
- CE, cULus, RCM
- Redundancy
- HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0797528932711546, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00947860728873405, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 686 kg CO2 eq., 685.851519054951
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2027
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Electrical Connection
- removable connector 6 ways power supply
- Mounting Support
- 35 mm symmetrical DIN rail
- Number Of Rj45 Port
- 8 10/100 Mbps
- Power Consumption In W
- 8 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- Yes
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Total Lifecycle Carbon Footprint
- 690 kg CO2 eq.
- Pep Code
- ENVPEP2003018_V2
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 142.8 mm
- [Us] Rated Supply Voltage
- 12...24 V
- Package Weight(Lbs)
- 716.000 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 0.24
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Cybersecurityport hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
Ethernet Serviceconfiguration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Local Signalling1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Port Ethernet100BASE-FX - 2 fiber optic, 10/100BASE-TX - 8 copper cable
Certificate AgencyCE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.9093042886997064
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.001108438220628
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ethernet Cabling SystemTF switches
Number Of Port10
Number Of Uplink Port2 F/O multi mode 100 Mbps
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Networking
Software Versionv6.2.5-6
Sustainable PackagingNo
Transmission Support Mediummultimode optical fiber fiber optictwisted shielded pairs cable CAT 5E copper cable
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh700.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal73 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]0.24
Customs Code8517620020
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint689.8511632824312
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Accessories
