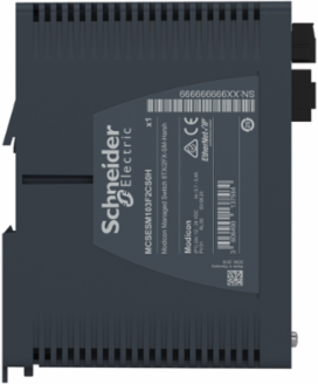

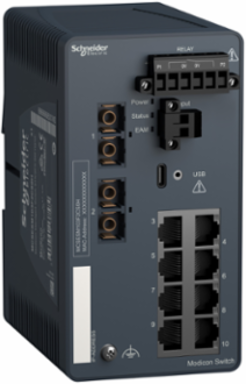

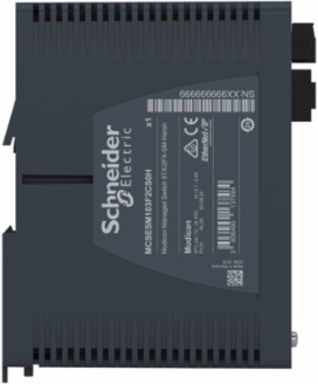

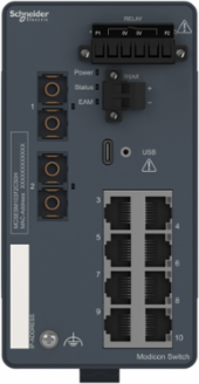

Schneider Electric MCSESM103F2CS0H Modicon Managed Switch 8 Copper + 2 Fiber Optic Ports, IP30
- MPN: MCSESM103F2CS0H
- PPN: SCH-MCSESM103F2CS0H
- UNSPSC: 43222612
CAD
$4798.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon Managed Switch from Schneider Electric is engineered to enhance network performance with its robust design, featuring eight copper ports and two fiber optic ports. This switch is built to meet the demands of industrial environments, offering reliable connectivity with an IP30 rating to ensure protection against dust and solid objects. With its advanced management capabilities and versatile port configuration, it is an ideal solution for optimizing communication in complex automation networks, making it an essential component for modern industrial applications.
Features
- High performance and robust hardware with more flexibility and features give customers more options
- Provides simple connectivity for multiple Ethernet devices
- Enhanced native cyber secure features help to protect and transmit data across the network at the high level of security
- High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
- Easy configuration and administration process via HTML5 based web pages
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|---|
| Depth | 117.6 mm |
| Weight | 570 g |
|---|
Communications & Management Attributes
| Alarm Function | power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed |
|---|---|
| Communication Service | TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server |
|---|---|
| Alarm Output | 1 voltfree contact 1 A |
Physical Attributes
| Optic Fiber Length | 30 km 9/125 µm |
|---|
Complementary Attributes
| Integrated Connection Type | duplex SC fiber opticshielded RJ45 copper cable |
|---|---|
| Maximum Number Of Switches In A Ring | 50 |
| Us Rated Supply Voltage | 12...24 V |
| Maximum Cable Distance Between Devices | 100 m copper cable |
|---|---|
| Maximum Number Of Switches In Cascade | unlimited |
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Cybersecurity | port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+ |
| Ethernet Service | configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Local Signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Port Ethernet | 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 8 copper cable |
| Certificate Agency | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.0366068891176652 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 3.4212636195715156 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Number Of Rj45 Port | 8 10/100 Mbps |
| Power Consumption In W | 8 W |
| Product Or Component Type | Ethernet TCP/IP managed switch |
| Protective Treatment | conformal coating |
| Returnability | No |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Total Lifecycle Carbon Footprint | 690 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 142.8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 700.8 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Diagnostics Run Time | signal contact, self test, MAC notification, RSPAN, SFLOW |
| Function Available | security status, alarms (Traps), system information, report |
| Marking | CE, cULus, RCM |
| Redundancy | HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP |
| Carbon Footprint Of The Distribution Phase A4 | 0.09091829832911624, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.010805612309156817, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 686 kg CO2 eq., 685.851519054951 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Networking and Cable Solutions - Networking Devices |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2003018EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2027 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Attenuation | 0-16 dB 9/125 µm) |
| Ethernet Cabling System | TF switches |
| Number Of Port | 10 |
| Number Of Uplink Port | 2 F/O single mode 100 Mbps |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | for severe environments |
| Range Of Product | Modicon Networking |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Transmission Support Medium | single mode optical fiber fiber optictwisted shielded pairs cable CAT 5E copper cable |
| Data Source | extrapolated product |
| Width Nominal | 73 mm |
| Customs Code | 8517620020 |
| Packaging Weight In G | 228.456 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-+70 °C, -40-+70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 690.4111134742785 |
| Environmental Disclosure | ENVPEP2003018_V2 |
| Ip Degree Of Protection | IP30 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 1-95 % non-condensing |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2003018EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2003018_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Ethernet TCP/IP managed switch |
|---|
| Range Of Product | Modicon Networking |
|---|
