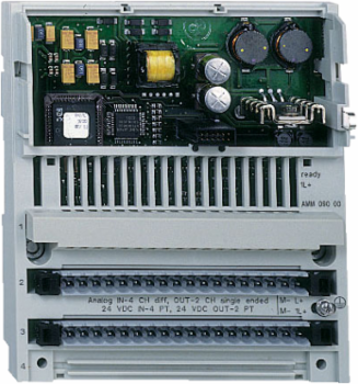

Schneider Electric 170AEC92000 Modicon Momentum High Speed Counter Module Base, 6 Inputs, 4 Outputs, 10 kHz

MPN: 170AEC92000
PPN: SCH-170AEC92000
UNSPSC: 32151601

$1890.35

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon Momentum High Speed Counter Module by Schneider Electric is tailored for automation and control applications where precision and speed are paramount. Featuring six inputs and four outputs capable of handling frequencies up to 10 kHz, this module efficiently measures and processes fast input signals, making it an ideal choice for complex control systems. Designed with the needs of modern industries in mind, it seamlessly integrates into existing setups, enhancing the capabilities of PLC and HMI systems while ensuring reliable performance in demanding environments.

Features

2 removable terminal blocks of electrical connection
CE approved
CSA and UL certified
Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States
Depth	40 mm

Weight	356 g

Complementary Attributes

Maximum Voltage Drop	<0.5 V 0.5 A at state on, <0.5 V 0.5 A at state on, <0.5 V 0.5 A at state on<0.5 V 0.5 A at state on, <0.5 V 0.5 A at state on, <0.5 V 0.5 A at state on

Maximum Leakage Current	1 mA DC 24 V

Important Information Attributes

Current State 0 Guaranteed	<= 1.2 mA, <= 1.2 mA
Group Of Channels	2 groups of 3 discrete inputs, 2 groups of 2 discrete outputs
Voltage State 0 Guaranteed	<= 5 V, <= 5 V
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.44038741599461295
Carbon Footprint Of The Manufacturing Phase A1 To A3	115 kg CO2 eq., 114.94869068421032
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Counter Configuration	via comm adapter
Current Consumption	280 mA 24 V DC
Marking	CE
Number Of Functions	1
Product Or Component Type	high speed counter module base
Range Of Product	Modicon Momentum automation platform
Resistance To Electrostatic Discharge	4 kV contact IEC 801-28 kV on air IEC 801-2
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	257 kg CO2 eq.
Database Version	2024-01
Height Nominal	141.5 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Current State 1 Guaranteed	>= 2.5 mA, >= 2.5 mA
Response Time	< 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 1 to state 0 output circuit, < 0.1 ms from state 1 to state 0 output circuit, < 0.1 ms from state 1 to state 0 output circuit3 ms from state 1 to state 0 input circuit< 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 0 to state 1 output circuit, < 0.1 ms from state 1 to state 0 output circuit3 ms from state 0 to state 1 input circuit
Voltage State 1 Guaranteed	>= 11 V, >= 11 V
Carbon Footprint Of The Distribution Phase A4	0.10632262766663765, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.19551522445434427, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	141 kg CO2 eq., 141.10219037035654
Local Publishable Date	2026-06-14
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Counting Frequency	10 kHz single ended200 kHz differential
Electrical Connection	2 connectors for removable terminal blocks
Number Of Counter	2
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Resistance To Electromagnetic Fields	10 V/m 80...1000 MHz IEC 801-3
Returnability	Yes
Sustainable Packaging	No
Dc Supply Voltage	24-24 V
Data Source	extrapolated product
Width Nominal	125 mm
Customs Code	8538908160
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
Functional Unit Unit	unit
Recyclability Potential In %	4

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	256.7931063226825
Circularity Profile	ENVEOLI1403005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % without condensation
Pep Verification Date	2026-07-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 16404.2 ft (5000 m), <= 16404.2 ft (5000 m)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP1403005EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Product Or Component Type	high speed counter module base

Range Of Product	Modicon Momentum automation platform

ETIM

ETIM 8	EC001601
ETIM 10	EC001601

ETIM 9	EC001601

Output Attributes

Discrete Output Current	1 A per counter2 A per module0.5 A per point
Discrete Output Number	4

Discrete Output Logic	positive
Discrete Output Voltage	24 V

Surge Protection And Filtering Attributes

Surge Current	5 A 1 ms

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Voltage	- 3...30 V DC, - 3...30 V DC- 3...30 V DC, - 3...30 V DC, 24 V DC
Counting Input Type	absolute SSI up, down with 4 sub-modesincremental up, down, quadrature
Discrete Input Logic	positive
Input Overvoltage Protection	45-45 V 10 s
