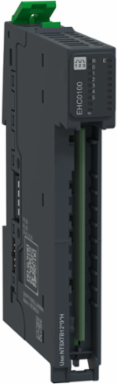

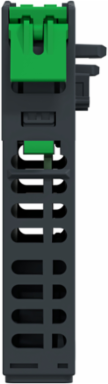

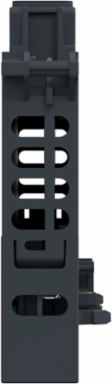

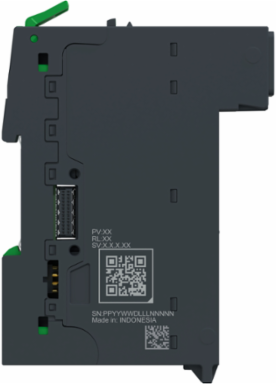

Schneider Electric NTSEHC0100K High Speed Counter Module + Base, 1 Incremental In, 24V DC, 250kHz, 2 In, Modicon Edge I/O NTS
- MPN: NTSEHC0100K
- PPN: SCH-NTSEHC0100K
- UNSPSC: 39121552
CAD
$579.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This counting kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a counting module. It has 1 HSC channel for pulse counting with 6 single counts, 1 single/double count, 1 frequency meter, 1 ratio meter, and 1 period meter. It counts events or pulses from various sources, such as sensors or switches. It functions within a temperature range of minus 20 to 60 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.070kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Features
- Conformal coating, extended temperature range, operates in severe environment
- Device genuineness (Manufacturer certificate)
- Hot-swappable module
- Save time and less time to market
- Reduce cost and unplanned downtime
- Increase flexibility
- Data-driven and cybersecure
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|

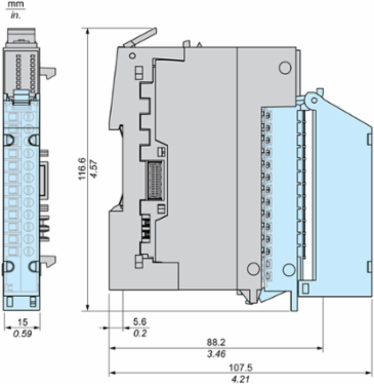

| Depth | 80 mm |
| Weight | 77 g |
|---|
Complementary Attributes
| Maximum Counting Frequency | 250 kHz |
|---|
Important Information Attributes
| Counter Functions | 1 HSC Channel for pulses counting, supports 6 Simple counting functions, 1 Single counting function, 1 Dual counting function, 1 Frequency meter, 1 Ratio meter, 1 Period meter |
|---|---|
| Marking | CE, UKCA, cULus, RCM |
| Typical Current Consumption | 40 mA 24 V DC on the Bus current, 3 mA 24 V DC on the internal field current maximum for inputs |
| Carbon Footprint Of The Distribution Phase A4 | 0.11394025836389983, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.00018395697987765396 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 18 kg CO2 eq., 17.78575601290216 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Counter Configuration | Modicon configuration software |
| Current State 1 Guaranteed | >= 2 mA>= 2 mA |
| Front Installation Possible | false |
| Isolation Between Channels | none |
| Isolation Between Group | 850 V AC |
| Mandatory Accessory | NTSXTB12_1_H terminal block |
| Number Of Functions | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | input over voltage protection |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Software Version | v6.1 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 27 kg CO2 eq. |
| Voltage State 0 Guaranteed | 0...5 V DC |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Contactor Control Function Block | false |
| Function Block Access Control | false |
| Function Block Automatic Reset | false |
| Function Block Emergency Stop | false |
| Function Block Restart Blockage | false |
| Database Version | 2023-02 |
| Height Nominal | 100 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 9029108000 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Function Block 2 Hand Switching | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
| Functional Unit Description | To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC). |
| Functional Unit Unit | unit |
| Kit Composition | NTSEHC0100 module, NTSXBA0100H base |
|---|---|
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715 |
| Certificate Agency | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.20738743126918327, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.053992310162123 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-12-19 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2410003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2442 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Bearing Track Assembly Possible | true |
| Current State 0 Guaranteed | <= 1.5 mA<= 1.5 mA |
| Device Application | Industrial Application |
| Hot Swapping Fallback | yes |
| Isolation Between Channels And Bus | 1500 V AC |
| Local Signalling | 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR) |
| Network Type | DC |
| Optical Interface Present | false |
| Product Or Component Type | counter module kit |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon Edge I/O NTS |
| Shock Resistance | 15 g 11 ms with and without accessory) |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Vibration Resistance | 1 g without accessory2 g with accessory |
| Voltage State 1 Guaranteed | 11...30 V DC |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Housing Color | grey |
| Frequency Measurement | true |
| Function Block Affirm Pushbutton | false |
| Function Block Contactless Working Protection Installation | false |
| Function Block Operating Mode Selection | false |
| System Accessory | false |
| Data Source | extrapolated product |
| Width Nominal | 15 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Packaging Weight In G | 5 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C-20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 27.161259969677243 |
| Circularity Profile | ENVEOLI2410003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000 m...5000 m with derating |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2410003EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Directives | 2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2410003EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | NTSN..... |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | counter module kit |
|---|
| Range Of Product | Modicon Edge I/O NTS |
|---|
ETIM
| ETIM 8 | EC001601 |
|---|---|
| ETIM 10 | EC001601 |
| ETIM 9 | EC001601 |
|---|
Input Attributes
| Input Filtering | 0 µs Anti Bounce filter configurable, 0., 1 µs Anti Bounce filter configurable, 2 µs Anti Bounce filter configurable, 5 µs Anti Bounce filter configurable, 10 µs Anti Bounce filter configurable, 50 µs Anti Bounce filter configurable, 100 µs Anti Bounce filter configurable, 250 µs Anti Bounce filter configurable, 500 µs Anti Bounce filter configurable, 1 ms Anti Bounce filter configurable, 2 ms Anti Bounce filter configurable, 4 ms Anti Bounce filter configurable, 12 ms Anti Bounce filter configurable |
|---|---|

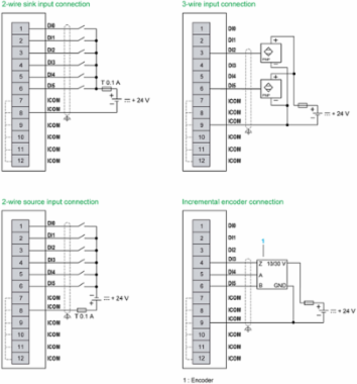

| Discrete Input Logic | sink or source |
| Discrete Input Voltage | 24 V DC |
| Discrete Input Current | 2.27 mA at 24 V |
|---|---|
| Discrete Input Number | 6 |
