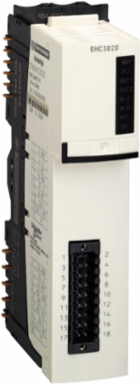

Schneider Electric STBEHC3020KC Modicon STB Counter Kit, 1 Channel, 0-40000Hz, IP20, 24V DC

MPN: STBEHC3020KC
PPN: SCH-STBEHC3020KC
UNSPSC: 32151601

$649.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon STB range, an offer of modular distributed I/O. This counter kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 inputs and single channel. It has rated supply voltage of 24V DC. This product is compatible with most major fieldbus networks. It supports maximum counting frequency of 40000Hz with counter functions like measuring time periods, up/down counting, down counting, frequency meter, loop (modulo) counting and count events. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 28.1mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Features

Adaptable to network
Simple, open and flexible
Save time, money by simplifying maintenance, diagnostic task
Modicon configuration software
Overload protection current limiter
Short circuit protection current limiter
Cold swapping
Power distribution module
IP20 degree of protection
Wide range of operating temperature from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Indonesia, United States

Depth	70 mm

Complementary Attributes

Maximum Voltage Drop	<3 V at state 1, <3 V at state 1<3 V at state 1, <3 V at state 1
Maximum Leakage Current	0.1 mA at state 0
Us Rated Supply Voltage	24 V DC

Maximum Counting Frequency	40000 Hz
Maximum Load Inductance	500 mH 4 Hz

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Counter Functions	measure time periods, up/, down counting, frequency meter, loop (modulo) counting, count events
Current State 1 Guaranteed	>= 2 mA, >= 2 mA
Hot Swapping Fallback	fallback output depending on parameter setting configured mandatory standard network interface modulefallback to 0 not configured mandatory standard network interface module, fallback to 0 basic network interface module
Protection Type	short-circuit protection current limiteroverload protection electronic tripping manual or automatic reset, short-circuit protection electronic tripping manual or automatic reset, overload protection current limiter
Vibration Resistance	+/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz, +/-0.35 mm 10-58 Hz
Certificate Agency	FM Class 1 Division 2, CSA, UL
Local Publishable Date	2026-07-27
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Cold Swapping	yes
Current Consumption	60...100 mA 5 V DC logic bus
Insulation Between Channels And Bus	500 V
Number Of Channels	1
Overvoltage Category	II
Product Or Component Type	counter kit
Returnability	No
Supply	power distribution module
Voltage State 1 Guaranteed	11...30 V
Height Nominal	28.1 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Current State 0 Guaranteed	<= 1.5 mA, <= 1.5 mA
Fallback Status	hold last value configuredstate 0 for output channels by default, state 0 or 1 for each channel configured
Kit Composition	STBEHC3020 module, STBXBA3000 base, STBXTS215018 terminal spring clamp connector
Status Led	1 LED (Green) EN validation input status (EN), 1 LED (Green) module status (RDY), 1 LED (Green) reset input status (RST)1 LED per counting input (Green) counting input status (INA, INB)1 LED per output (Green) output status (OUT1, OUT2)1 LED (Red) module error (FLT)
Voltage State 0 Guaranteed	-3...5 V, -3...5 V
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Counter Configuration	Modicon configuration software
Filter Time	0 ms digital 40000 Hz counting inputs0.4 ms digital 1000 Hz counting inputs1.2 ms digital 400 Hz counting inputs2.5 µs analog counting inputs25 µs analog auxiliary input
Marking	CE
Number Of Functions	6
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 ms IEC 88 reference 2-27
Sustainable Packaging	No
Dc Supply Voltage	24-24 V
Width Nominal	128.3 mm
Customs Code	9029108000

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C (without derating), -25-70 °C (without derating)-25-70 °C (without derating), -25-70 °C (without derating)
Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Product Compatibility	mounting base STBXBA3000, power distribution module STBPDT3100/3105
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20 conforming to IEC 61131-2 class 1
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % 60-60 °C without condensation

General Attributes

Product Or Component Type	counter kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001601
ETIM 10	EC001601

ETIM 9	EC001601

Output Attributes

Discrete Output Logic	positive or negative configurable
Output Voltage	24 V
Output Voltage Type	DC

Nominal Output Current	0.5 A
Output Voltage Limits	19.2...30 V

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Input Compatibility	2/3 wire photo-electric sensor, mechanical contact, with 2-wire/3-wire proximity sensors, incremental encoder
Input Current	6 mA
Input Voltage	24 V
Input Voltage Type	DC
