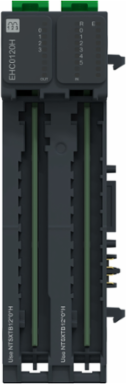

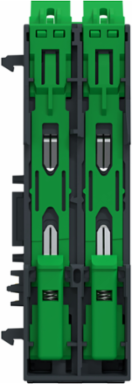

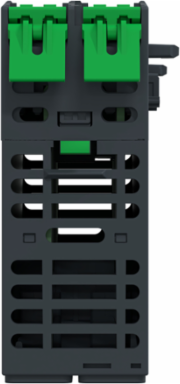

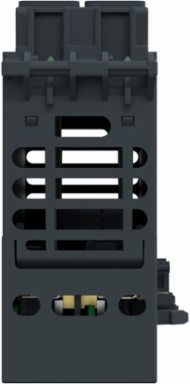

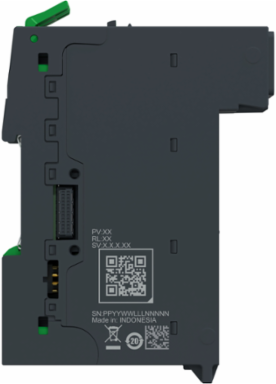

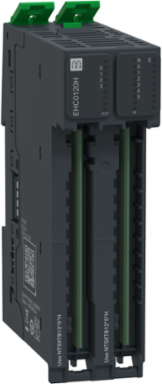

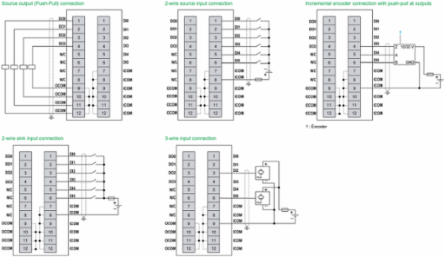

Schneider Electric NTSEHC0120HK High Speed Counter Module + Base, 1 Incremental In, 24V DC, 250kHz, 2 In, 4 Out, Hardened, Modicon Edge I/O NTS
- MPN: NTSEHC0120HK
- PPN: SCH-NTSEHC0120HK
CAD
$810.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This counting kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a countingmodule. It has 1 HSC channel for pulse counting, i.e. 6 single counting functions, 1 single/double counting function, 1 frequency meter, 1 ratio meter, 1 period meter. It counts events or pulses from various sources, such as sensors or switches. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 30mm wide, 88mm deep, and weighs 0.130kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States

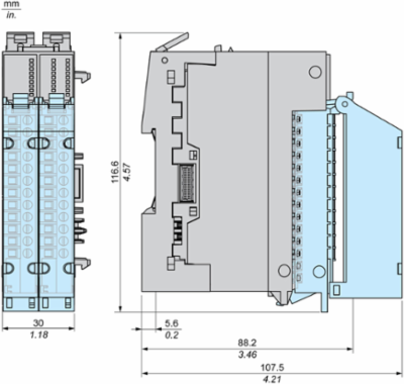

Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Counting Frequency
- 250 kHz
Important Information Attributes
- Counter Functions
- 1 HSC Channel for pulses counting, supports 6 Simple counting functions, 1 Single counting function, 1 Dual counting function, 1 Frequency meter, 1 Ratio meter, 1 Period meter, 1 PWM output
- Marking
- CE, UKCA, cULus, RCM
- Protection Type
- short-circuit protection on output, input over voltage protection
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3528279674839352, 0.4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 15 kg CO2 eq., 15.403545358847248
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Counter Configuration
- Modicon configuration software
- Current State 1 Guaranteed
- >= 2 mA>= 2 mA
- Front Installation Possible
- false
- Isolation Between Channels
- none
- Isolation Between Group
- 850 V AC
- Mandatory Accessory
- NTSXTB12_1_H terminal block
- Number Of Functions
- 1
- Power Dissipation In W
- 2.4 W maximum filament lamp
- Product Or Component Type
- counter module kit
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Vibration Resistance
- 1 g without accessory2 g with accessory
- Voltage State 1 Guaranteed
- 11...30 V DC
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- Housing Color
- grey
- Frequency Measurement
- true
- Function Block Affirm Pushbutton
- false
- Function Block Contactless Working Protection Installation
- false
- Function Block Operating Mode Selection
- false
- System Accessory
- false
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 100 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Suitable For Multi-axis Control
- false
- Suitable For Single-axis Controller
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9029108000
Kit CompositionNTSEHC0120H module, NTSXBA0100H base
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715
Typical Current Consumption45 mA 24 V DC on the Bus current, 3 mA 24 V DC on the internal field current maximum for inputs500 mA 24 V DC on the internal field current maximum for outputs
Carbon Footprint Of The Distribution Phase [A4]0.19384641358014126, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00031296577096068403
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]19 kg CO2 eq., 19.402642923166
Local Publishable Date2026-07-20
Pre Comm Date2024-12-19
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2410003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2442
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bearing Track Assembly Possibletrue
Current State 0 Guaranteed<= 1.5 mA<= 1.5 mA
Device ApplicationIndustrial Application
Hot Swapping Fallbackyes
Isolation Between Channels And Bus1500 V AC
Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR)
Network TypeDC
Optical Interface Presentfalse
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint35 kg CO2 eq.
Voltage State 0 Guaranteed0...5 V DC
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Contactor Control Function Blockfalse
Function Block Access Controlfalse
Function Block Automatic Resetfalse
Function Block Emergency Stopfalse
Function Block Restart Blockagefalse
Pep CodeENVPEP2410003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal30 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Function Block 2-hand Switchingfalse
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Suitable For Multi-axis Positioningfalse
Suitable For Single-axis Positioningfalse
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)163.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2410003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint35.353175628848284
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410003EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- counter module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Output Attributes
- Discrete Output Logic
- source(push-pull)
- Nominal Output Current
- 0.5 A
- Output Voltage Limits
- 28.8 V DC
Discrete Output Number4
Output Voltage24 V DC
Input Attributes
- Input Filtering
- 0 µs Anti Bounce filter configurable, 0., 1 µs Anti Bounce filter configurable, 2 µs Anti Bounce filter configurable, 5 µs Anti Bounce filter configurable, 10 µs Anti Bounce filter configurable, 50 µs Anti Bounce filter configurable, 100 µs Anti Bounce filter configurable, 250 µs Anti Bounce filter configurable, 500 µs Anti Bounce filter configurable, 1 ms Anti Bounce filter configurable, 2 ms Anti Bounce filter configurable, 4 ms Anti Bounce filter configurable, 12 ms Anti Bounce filter configurable
- Discrete Input Logic
- sink or source
- Discrete Input Voltage
- 24 V DC
Discrete Input Current2.27 mA at 24 V
Discrete Input Number6
