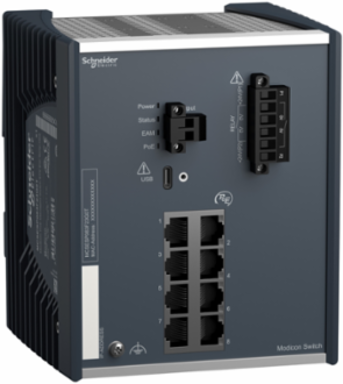

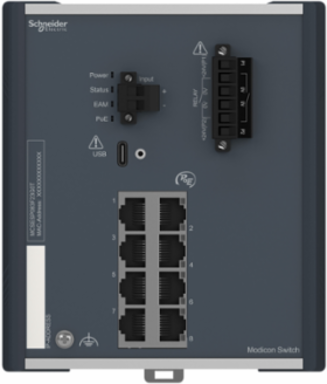

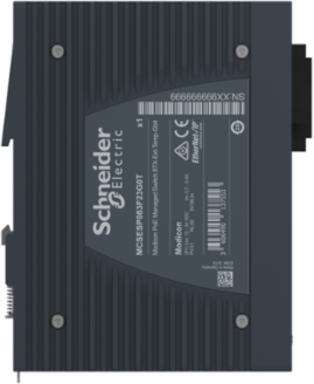

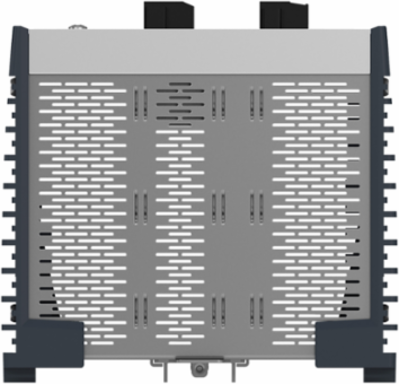

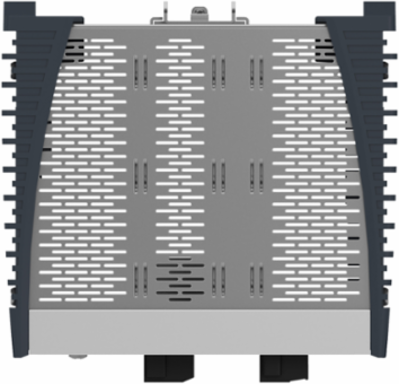

Schneider Electric MCSESP083F23G0T Modicon PoE Managed Switch - 8 Gigabit Ports, -40 to +70 C
- MPN: MCSESP083F23G0T
- PPN: SCH-MCSESP083F23G0T
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Modicon Power over Ethernet (PoE) Managed Switch from Schneider Electric is engineered for robust performance in demanding environments, featuring eight Gigabit ports designed for copper connections. This switch supports a wide range of communication services, including TFTP and Quality of Service (QoS), ensuring efficient data management and network reliability. With an extended temperature range of -40 to +70 C and advanced cybersecurity measures such as port hardening and role-based access control, it is ideal for critical applications that require both performance and security. Additionally, its compact design allows for easy installation on a 35 mm symmetrical DIN rail, making it a versatile choice for industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117.15 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper (Gbit)
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper (Gbit)
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for PoE power supply, 1 dual colour LED (green/yellow) for channel diagnostic
- Redundancy
- HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
- Carbon Footprint Of The Distribution Phase [A4]
- 0.22330810115923289, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02654010040845534, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 9 088 kg CO2 eq., 9087.532627478102
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ethernet Cabling System
- TF switches
- Number Of Port
- 8
- Port Ethernet
- 10/100/1000 BASE-TX - 8 copper cable
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper (Gbit)
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 9285.6
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 122.4 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification, RSPAN, SFLOW
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
Certificate AgencyCE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213, FCC, CE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213, FCC part 15 class A, CCC Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.5460520083591778
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 8.403103627017758
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2027
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 6 ways power supply

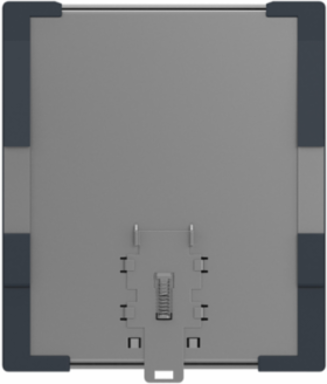

Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port8 10/100/1000 Mbps
Power Consumption In W106 W
Product Or Component TypeEthernet TCP/IP managed switch
ReturnabilityNo
Supply Voltage Limits18-30 V DC SELV
Total Lifecycle Carbon Footprint9 099 kg CO2 eq.
Pep CodeENVPEP2003018_V2
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal144.2 mm
[Us] Rated Supply Voltage24 V
Package Weight(Lbs)1.4 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-+70 °C, -40-+70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 9098.731631315048
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
