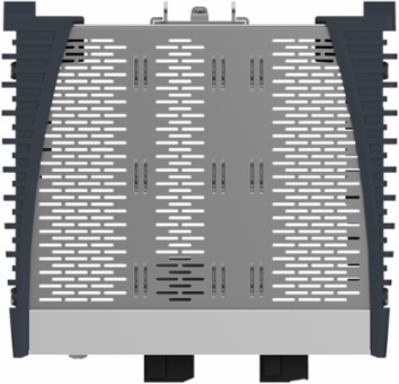

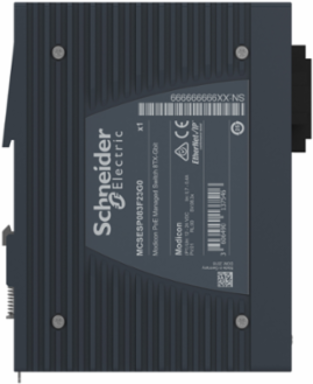

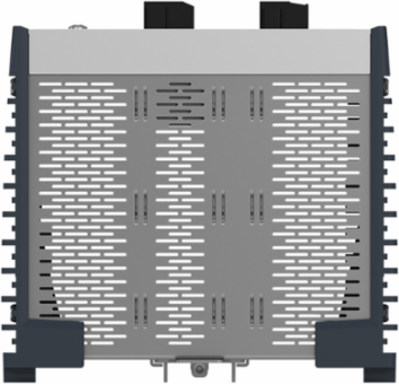

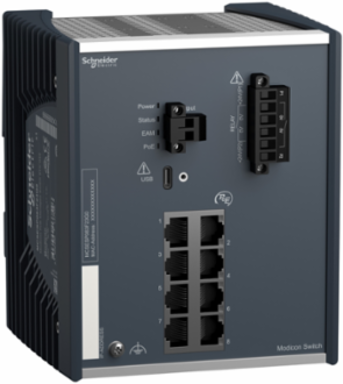

Schneider Electric MCSESP083F23G0 Modicon Networking Managed Network Switch, 8 Gigabit Ports, 144.2 mm Height

MPN: MCSESP083F23G0
PPN: SCH-MCSESP083F23G0
UNSPSC: 43222612

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon Networking Managed Network Switch from Schneider Electric is engineered for efficient data management in industrial environments. With its eight Gigabit ports, this switch ensures high-speed connectivity to meet the demands of modern network applications. Its compact design, standing at 144.2 mm in height, allows for easy integration into existing setups without sacrificing performance. This reliable solution is ideal for enhancing network reliability and streamlining communication in various industrial control systems.

Features

High performance and robust hardware with more flexibility and features give customers more options
Provides simple connectivity for multiple Ethernet devices
Enhanced native cyber secure features help to protect and transmit data across the network at the high level of security
High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
Easy configuration and administration process via HTML5 based web pages

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, United States
Depth	117.15 mm

Weight	1400 g

Communications & Management Attributes

Alarm Function	power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
Communication Service	TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection

Communication Port Protocol	Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Alarm Output	1 voltfree contact 1 A

Complementary Attributes

Integrated Connection Type	shielded RJ45 copper (Gbit)
Maximum Number Of Switches In A Ring	50
Us Rated Supply Voltage	24 V

Maximum Cable Distance Between Devices	100 m copper (Gbit)
Maximum Number Of Switches In Cascade	unlimited

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Cybersecurity	port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
Ethernet Service	configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG

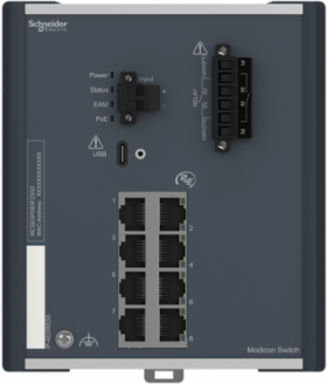

Local Signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for PoE power supply, 1 dual colour LED (green/yellow) for channel diagnostic
Redundancy	HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
Carbon Footprint Of The Distribution Phase A4	0.22330810115923289, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.02654010040845534, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	9 088 kg CO2 eq., 9087.532627478102
Local Publishable Date	2026-01-12
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2003018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2027
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	removable connector 6 ways power supply

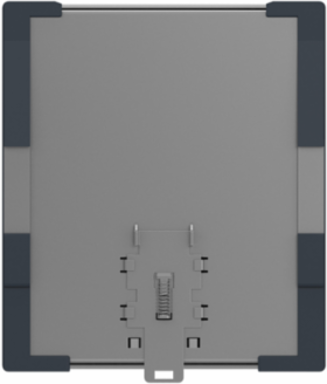

Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	8 10/100/1000 Mbps
Power Consumption In W	106 W
Product Or Component Type	Ethernet TCP/IP managed switch
Returnability	No
Supply Voltage Limits	18-30 V DC SELV
Total Lifecycle Carbon Footprint	9 099 kg CO2 eq.
Database Version	2024-01
Height Nominal	144.2 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	9285.6

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Time	signal contact, self test, MAC notification, RSPAN, SFLOW
Function Available	security status, alarms (Traps), system information, report
Marking	CE, cULus, RCM
Certificate Agency	CE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213, FCC part 15 class A, CCC Ex
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 2.5460520083591778
Carbon Footprint Of The Manufacturing Phase A1 To A3	8 kg CO2 eq., 8.403103627017758
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ethernet Cabling System	TF switches
Number Of Port	8
Port Ethernet	10/100/1000 BASE-TX - 8 copper cable
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon Networking
Software Version	v6.2.5-6
Sustainable Packaging	No
Transmission Support Medium	twisted shielded pairs cable CAT 5E copper (Gbit)
Data Source	extrapolated product
Width Nominal	122.4 mm
Customs Code	8517620020
Packaging Weight In G	561.12
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2003018_V2
Ip Degree Of Protection	IP30
Packaging Without Single Use Plastic	No
Relative Humidity	1-95 % non-condensing
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
China Rohs Regulation	X
Carbon Footprint	9098.731631315048
Circularity Profile	ENVEOLI2003018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2003018_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
