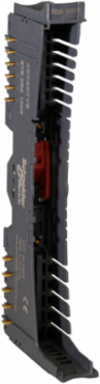

Schneider Electric STBXBA1000 Modicon STB Mounting Base for I/O Module, 13.9 mm Width
- MPN: STBXBA1000
- PPN: SCH-STBXBA1000
CAD
$23.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Modicon STB Mounting Base is expertly engineered to accommodate I/O modules with a compact width of 13.9 mm, making it an essential component in automation and control systems. This mounting base plays a crucial role in providing a secure and stable foundation for your modules, ensuring reliable performance in various applications within PLC, HMI, and data acquisition environments. With its robust design, this base reflects the high standards of Schneider Electric, supporting seamless integration and operation in complex control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, India, Mexico, United States
Depth70 mm
Communications & Management Attributes
- With Pluggable Communication Modules
- true
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Front Installation Possible
- false
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- System Accessory
- true
- With Pluggable Central Modules
- true
- Height Nominal
- 128.3 mm
- Accessory / Separate Part Category
- mounting accessories
- Accessory / Separate Part Type
- base
- Appendant Operation Agent (Ex Ia)
- false
- Performance Level According To En Iso 13849-1
- none
- Rack-assembly Possible
- false
- With Pluggable Modules Analogue I/O
- true
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1950
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Number Of Slots1
Range Of ProductModicon STB distributed I/O solution
Sustainable PackagingNo
With Integrated Power Supplyfalse
With Pluggable Function And Technology Modulestrue
Width Nominal13.9 mm
Accessory / Separate Part DestinationI/O module
Accessory / Separate Part Designationmounting base
Appendant Operation Agent (Ex Ib)false
Plug-in Modules Other Presenttrue
Wall Mounting/Direct Mounting Possiblefalse
With Pluggable Modules Digital I/Otrue
Package Weight(Lbs)34.000 g
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- STBDDO3605, STBDDI3230, STBDDI3420, STBDDO3415, STBDDI3610, STBDDO3230, STBACI1225, STBDDI3425, STBDDI3615, STBDDO3410, STBART0200, STBDDO3200, STBDDO3600, STBAVI1275, STBAVO1265, STBAVO1250, STBACI1230, STBAVI1255, STBACO1225, STBAVO1255, STBACO1210, STBAVI1270
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Modicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001598
ETIM 9EC001598
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
