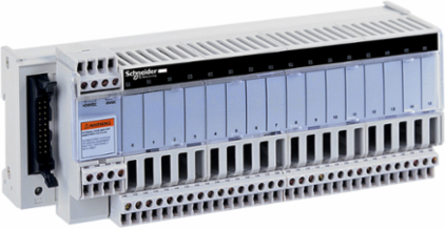

Schneider Electric ABE7H16S43 passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator

passive connection sub-base ABE7 - 16 inputs - fuses - Led - isolator
  • MPN: ABE7H16S43
  • PPN: SCH-ABE7H16S43

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$307.38/ EA

Description

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 1 switch disconnector per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 206mm. It weighs 0.64kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Specifications

Environment

Product Certifications
DNV || CSA || UL || GL || EAC
Ambient Air Temperature For Operation
-5-60 °C IEC 61131-2
Vibration Resistance
2 gn 10-150 Hz)IEC 60068-2-6
Pollution Degree
2 IEC 60664-1
Ambient Air Temperature For Storage
-40-80 °C IEC 61131-2
Resistance To Fast Transients
2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP2X IEC 60529
Resistance To Incandescent Wire750 °C IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121229EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN

Complementary

Height
77 mm
Short-Circuit Protection
1 A internal fuse, 5 x 20 mm, fast blow PLC end) || 0.125 A fuse per channel, 5 x 20 mm, fast blow output circuit)
Current Per Channel
0.125 A
Installation Category
II IEC 60664-1
[Ui] Rated Insulation Voltage
2000 V
Fixing Mode
by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Connector Type
HE-10
Tightening Torque
0.6 N.m flat Ø 3.5 mm
Supply Circuit Type
DC
Voltage Drop On Power Supply Fuse
0.3 V
Pin Number20 pins
Number Of Horizontal Rows1
Status Led1 LED per channel (green) channel status || 1 LED per channel (red) blown fuse indication || 1 LED (green) power ON
Maximum Current Per Output Common1.8 A
Net Weight0.64 kg
Maximum Voltage Drop Per Channel0.1 V
Polarity Distribution24 V
Maximum Supply Current1.8 A
Width206 mm
Depth58 mm

Specifications

Range Of Product
Modicon ABE7
Number Of Terminal Per Channel
2
Number Of Channels
16
Sub-Base Type
input sub-base
Product Or Component Typepassive discrete I/O sub-base
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Channel Additional Information1 switch disconnector per channel
[Us] Rated Supply Voltage19...30 V IEC 61131-2
