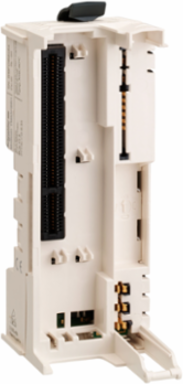

Schneider Electric TM5ACBN1 Modicon TM5 Bus Base Module, 24V DC, White, 0.02 kg
- MPN: TM5ACBN1
- PPN: SCH-TM5ACBN1
CAD
$71.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an offer of connection accessories for IP20 modular I/O system. The bus base module offers a rated supply voltage of 24V DC supplied with 2 protective plates. It is available in white color. It weighs 0.02kg. It is suitable for packaging, material working, material handling and machine control solution applications. It is compatible with Modicon M258, Modicon LMC078 and Modicon LMC058 range of products such as a TM5NCO1 interface module, TM5SPS3 power supply and TM5NS31. This IP20 modular IO system offers a flexible and scalable configuration of expansions by direct connection with the Modicon controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, United States |
|---|
Physical Attributes
| Color | White |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.027140459861832094, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.03284785765452758, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 6 kg CO2 eq., 6.3882556450344445 |
| Local Publishable Date | 2026-02-24 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Provided Equipment | supplied with 2 protective plates |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Pep Code | ENVPEP1511023EN |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Category | communication accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.05717028990003272 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.2561348235035859 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511023EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon TM5 |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To seat an electronic module on a DIN rail and to connect it to the TM5 bus 100% of the time, for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Austria, AT |
| Energy Model - Use [B6] | Electricity origin |
| [Us] Rated Supply Voltage | 24 V DC |
| Accessory / Separate Part Type | bus base |
| Package Weight(Lbs) | 63.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | TM5NCO1 interface module, TM5SPS3 power supply, TM5NS31 interface module |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1511023EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7.761549075954423 |
| Environmental Disclosure | ENVPEP1511023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1511023EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Provided Equipment | supplied with 2 protective plates |
|---|
| Range Of Product | Modicon TM5 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
