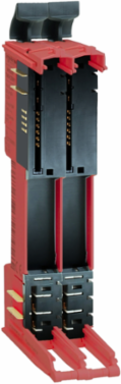

Schneider Electric TM5ACBM4FS Modicon TM5 Safety Coded Bus Base, 24 V DC, IP20, Red
- MPN: TM5ACBM4FS
- PPN: SCH-TM5ACBM4FS
CAD
$204.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TM5ACBM4FS Modicon TM5 Safety Coded Bus Base from Schneider Electric is engineered to enhance safety and reliability in automated systems. Designed to operate at 24 V DC, this robust unit complies with IP20 standards, ensuring protection against solid objects larger than 12.5 mm while providing the flexibility needed for a variety of applications. With its vibrant red casing, it not only stands out visually but also signifies its critical function in safety protocols within control systems, making it an essential component for secure industrial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, Finland, France |
|---|
Physical Attributes
| Color | Red |
|---|
Important Information Attributes
| Certificate Agency | CE, cULus |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.052632965304792036 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.156441583542984 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To seat an electronic module on a DIN rail and to connect it to the TM5 bus 100% of the time, for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Austria, AT |
| Energy Model - Use [B6] | Electricity origin |
| [Us] Rated Supply Voltage | 24 V DC |
| Accessory / Separate Part Type | bus base |
| Package Weight(Lbs) | 58.0 g |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.02498645511089304, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.030240884824803173, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 6 kg CO2 eq., 6.3882556450344445 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511023EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Power Consumption In W | 0.13 W |
| Range Of Product | Modicon TM5 |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1511023EN |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Category | communication accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C vertical, 0-60 °C horizontal |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7.652557533817917 |
| Environmental Disclosure | ENVPEP1511023EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | TM5 safety I/O modules |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511023EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1511023EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation or dripping water |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Range Of Product | Modicon TM5 |
|---|
