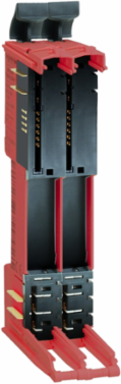

Schneider Electric TM5ACBM3FS Modicon TM5 Bus Base with Internal I/O, 24 V DC, IP20, Red
- MPN: TM5ACBM3FS
- PPN: SCH-TM5ACBM3FS
CAD
$107.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an offer of connection accessories for IP20 modular I/O system. The bus base module offers a rated supply voltage of 24V DC with power consumption of 0.13W. It is an IP20 rated product. It is available in red color. It is suitable for packaging, material working, material handling and machine control solution applications. This product is certified by CE and CULus. It is compatible with Modicon M258 TM5 safety I/O module and Modicon LMC058 TM5 safety I/O module. This IP20 modular IO system offers a flexible and scalable configuration of expansions by direct connection with the Modicon controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, France |
|---|
Physical Attributes
| Color | Red |
|---|
Important Information Attributes
| Certificate Agency | CE, cULus |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.052632965304792036 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.156441583542984 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To seat an electronic module on a DIN rail and to connect it to the TM5 bus 100% of the time, for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Austria, AT |
| Energy Model - Use [B6] | Electricity origin |
| [Us] Rated Supply Voltage | 24 V DC |
| Accessory / Separate Part Type | bus base |
| Package Weight(Lbs) | 58.000 g |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.02498645511089304, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.030240884824803173, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 6 kg CO2 eq., 6.3882556450344445 |
| Local Publishable Date | 2026-02-24 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511023EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Power Consumption In W | 0.13 W |
| Range Of Product | Modicon TM5 |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1511023EN |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Category | communication accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-55 °C horizontal, 0-50 °C vertical |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7.652557533817917 |
| Environmental Disclosure | ENVPEP1511023EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | TM5 safety I/O modules |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511023EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1511023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation or dripping water |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Range Of Product | Modicon TM5 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
