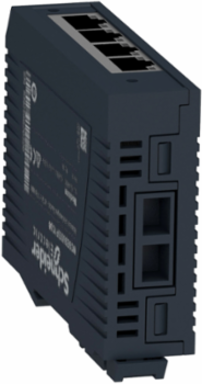

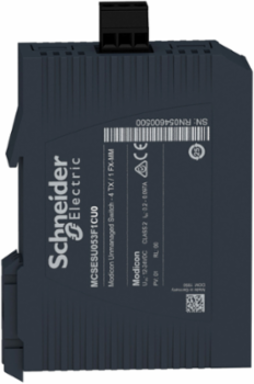

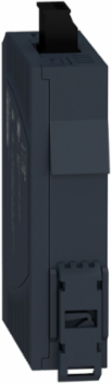

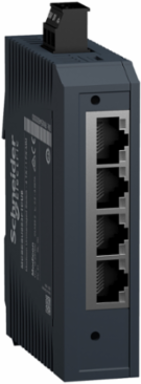

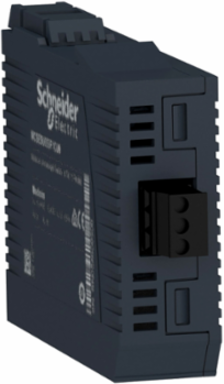

Schneider Electric MCSESU053F1CU0 Modicon Unmanaged Network Switch, 4 Copper Ports, 1 Fiber Optic, 2.4W
- MPN: MCSESU053F1CU0
- PPN: SCH-MCSESU053F1CU0
- UNSPSC: 43222612
CAD
$416.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 4 transmission ports for copper cable and 1 port for multimode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 2.4W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.130kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Features
- Compact footprint to maximize the space in our industrial application sites
- Simplification in product selection with several plug-and-play variants
- Robust industrial design withstanding industrial environments
- Wide DC power supply input range from 9.6 V DC to 32 V DC
- Lower power consumption than our legacy offers and other products on the market
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada, United States |
|---|---|
| Depth | 79 mm |
| Weight | 130 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Ethernet TCP/IP |
|---|
Physical Attributes
| Optic Fiber Length | 4 km 62.5/125 µm5 km 50/125 µm |
|---|
Complementary Attributes
| Integrated Connection Type | shielded RJ45 copper cableduplex SC fiber optic |
|---|---|
| Maximum Number Of Switches In Cascade | unlimited |
| Maximum Cable Distance Between Devices | 100 m copper cable |
|---|---|
| Us Rated Supply Voltage | 12...24 V |
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Attenuation | 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm) |
| Marking | CE, UL, RCM |
| Certificate Agency | CE, UL, RCM, EAC, UKCA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.23641911506192367 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.8 kg CO2 eq., 0.7802881939373634 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2003018EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2137 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Electrical Connection | removable connector 3 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Number Of Rj45 Port | 4 10/100 Mbps |
| Power Consumption In W | 2.4 W |
| Product Or Component Type | Ethernet TCP/IP unmanaged switch |
| Returnability | No |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Total Lifecycle Carbon Footprint | 207 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 102 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 210.24 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Signalling | 1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status |
| Port Ethernet | 10/100BASE-TX - 4 copper cable, 100BASE-FX - 1 fiber optic |
| Carbon Footprint Of The Distribution Phase A4 | 0.020735752250500197, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0024644378950708533, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 206 kg CO2 eq., 205.75545571648536 |
| Local Publishable Date | 2026-07-24 |
| Device Type | Networking and Cable Solutions - Networking Devices |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Ethernet Cabling System | TF switches |
| Number Of Port | 5 |
| Number Of Uplink Port | 1 F/O multi mode 100 Mbps |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon Networking |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Transmission Support Medium | twisted shielded pairs cable CAT 5E copper cablemultimode optical fiber fiber optic |
| Data Source | extrapolated product |
| Width Nominal | 26 mm |
| Customs Code | 8517620020 |
| Packaging Weight In G | 52.104 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2003018_V2 |
| Ip Degree Of Protection | IP30 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-95 % non-condensing |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 206.7953632156302 |
| Circularity Profile | ENVEOLI2003018EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2003018_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Ethernet TCP/IP unmanaged switch |
|---|
| Range Of Product | Modicon Networking |
|---|
ETIM
| ETIM 8 | EC000734 |
|---|---|
| ETIM 10 | EC000734 |
| ETIM 9 | EC000734 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
