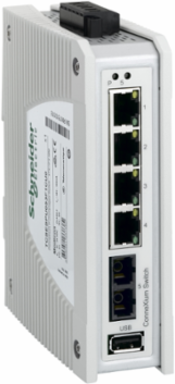

Schneider Electric TCSESPU053F1CU0 switch, Modicon Networking, premium unmanaged switch, 4 ports for copper, 1 port for fiber optic multimode
- MPN: TCSESPU053F1CU0
- PPN: SCH-TCSESPU053F1CU0
CAD
$836.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon Networking range, an offer of Modicon Premium Unmanaged Switch. This device comes with Ethernet TCP/IP protocol. It comes with 4 copper cable transmission ports and 1 port for Multi-mode fiber optic. It provides simple connectivity for multiple Ethernet device and more advanced switching features for unmanaged switches. This product works at a power consumption of 4.3W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 39mm (width) x 135mm (height) x 117mm (depth) and weighs 0.43 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117 mm
Communications & Management Attributes
- Communication Port Protocol
- Ethernet TCP/IP
Communication ServiceQuality of Service (QoS)
Physical Attributes
- Optic Fiber Length
- 4 km 62.5/125 µm5 km 50/125 µm
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cableduplex SC fiber optic
- Maximum Number Of Switches In Cascade
- unlimited
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status
- Port Ethernet
- 10/100BASE-TX - 4 copper cable, 100BASE-FX - 1 fiber optic
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Not Applicable/Out of Scope
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ethernet Cabling System
- TF switches
- Number Of Port
- 5
- Number Of Uplink Port
- 1 F/O multi mode 100 Mbps
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cablemultimode optical fiber fiber optic
- Width Nominal
- 39 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Ethernet Servicemulticast filtering, data stream control
MarkingCE, UL, RCM
Certificate AgencyCE, UL, RCM, EAC, UKCA, DNV, CSA C22-2 No 213
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Rohs Eur StatusNot Applicable/Out of Scope
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port4 10/100 Mbps
Power Consumption In W4.3 W
Product Or Component TypeEthernet TCP/IP unmanaged switch
ReturnabilityNo
Sustainable PackagingNo
Height Nominal135 mm
[Us] Rated Supply Voltage12...24 V
Package Weight(Lbs)680.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-+70 °C, -40-+70 °C
- Take Back
- No
- Eu Rohs Directive
- Not Applicable/Out of Scope
- Packaging Made With Recycled Cardboard
- No
- Relative Humidity
- 10-95 % non-condensing
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- Ethernet TCP/IP unmanaged switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
