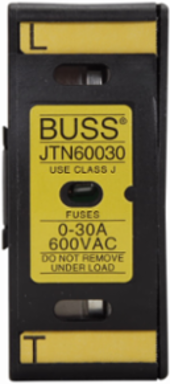

Bussmann JTN60030 Finger-Safe Fuse Holder 600V 30A 18 To 8 AWG Thermoplastic 2.71 Inch Height
- MPN: JTN60030
- UPC: 051712557016
- PPN: BUS-JTN60030
CAD
$40.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Finger-Safe Fuse Holder 600V 30A 18 To 8 AWG Thermoplastic 2.71 Inch Height
Features
- Specifically tailored to hold 30-Amp, 600V Class J fuses (such as Bussmann LPJ, JKS, or DFJ series), this holder handles extreme branch-circuit and motor-control demands. It provides the rigid mechanical tension required to manage high current-limiting performance and massive 200,000A interrupting ratings (AIR), protecting sensitive solid-state drives and automation components from catastrophic fault currents.
- Designed for rapid, toolless snap-on mounting directly onto standard 35mm DIN rails, this compact module streamlines control panel fabrication. It eliminates the tedious layout, drilling, and tapping required by traditional bolt-down blocks, allowing panel builders to optimize enclosure space and easily scale distribution blocks side-by-side.
- Equipped with heavy-duty tin-plated copper box lugs rated for 18 to 8 AWG copper wire, this terminal configuration delivers an airtight, low-resistance connection. The rugged pressure plate design ensures uniform clamping force across both solid and stranded wires, preventing localized overheating, terminal backing-out, and vibration-induced arcing over years of continuous machinery operation.
- Engineered with an advanced, touch-safe housing that meets strict IP20 ingress protection standards, this holder completely shrouds live electrical components. It eliminates the risk of accidental knuckle or finger contact with energized terminals during routine panel inspections, ensuring a safer work environment for industrial electricians and full compliance with OSHA and NFPA 70E safety regulations.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Connection
- 18 to 8 AWG Tin Plated Copper Alloy Terminal
- Class
- Class J
- Product Width
- 2.18 in
- Product Weight
- 0.21 lb
- Material Type
- Thermoplastic
Voltage600V
Operating Temperature75C
Product Height2.71 in
Product Length/Depth1.13 in
Mounting35 mm DIN Rail
CompliancesRoHS Compliant
