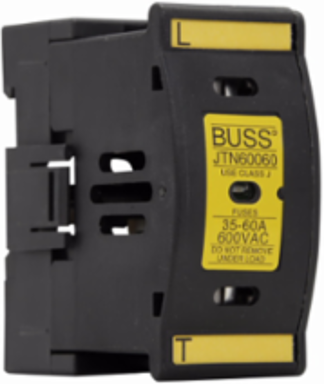

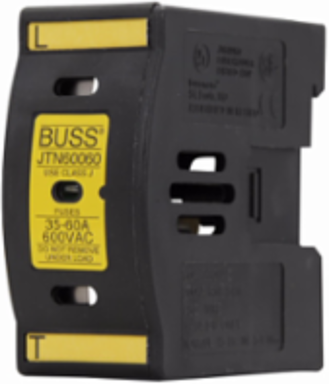

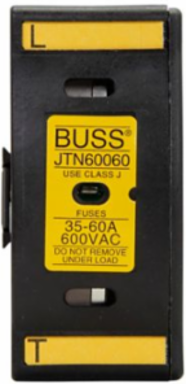

Edison JTN60060 Eaton Bussmann series JT finger-safe fuse holder, 600V, 60A, 14 To 4 AWG Tin Plated Copper Alloy Terminal, N

Description

Features

• Equipped with an integrated neon lamp indicator, this unit provides immediate visual confirmation of a cleared fuse at a glance. By instantly pinpointing the exact failure point without requiring a multimeter, your maintenance team can slash mean-time-to-repair (MTTR) and restore critical motor or machine power significantly faster than with standard non-indicating blocks.
• esigned for a quick-snap fit onto standard 35mm DIN rails, this modular holder eliminates the need for drilling and tapping individual mounting holes. The versatile 3-pole configuration saves significant horizontal rail space, making it an ideal solution for high-density motor control centers (MCCs) and compact OEM machinery enclosures where internal real estate is at a premium.
• Rated for 60 Amps at 600V AC, this holder is purpose-built to house high-performance Class J fuses used in demanding industrial environments. With a 200kA short-circuit current rating (SCCR), it provides a high-capacity safety barrier that protects sensitive downstream components from massive thermal damage during a catastrophic fault event.
• Featuring high-conductivity copper box lugs designed to accept #4 to 14 AWG wire, this holder ensures a low-resistance, vibration-resistant connection. The robust terminal design prevents wire pull-out and overheating in high-vibration manufacturing environments, ensuring long-term electrical stability for your most critical power distribution circuits.

Documentation & Downloads

Specifications
