Killark MOLB-5CG Aluminum Mogul Conduit Body with Cover & Gasket, Hub Size 1-1/2 Inch, Volume 100 Cubic Inches
- MPN: MOLB-5CG
- UPC: 783936410180
- PPN: HBL-MOLB-5CG
- UNSPSC: 39131708
CAD
$522.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

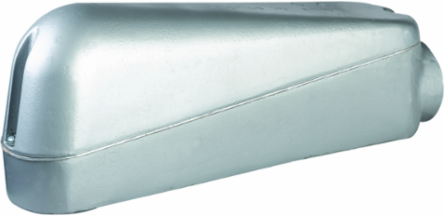

MOL Series - Aluminum Mogul Conduit Body With Cover And Gasket - Hub Size 1-1/2 Inch - Volume 100.0 Cubic Inches
Features
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Mogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/2"
- Special Features
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.
- Width
- 3.125 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1 1/2" MOLB W/COVER & GASKET
- Harmonization Code
- 7609000000
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Series
- Moguls Series
- BOX SIZE
- 4.750x13.188x3.125 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936410180
- Item Package Type
- K-PAK (cover & gasket included)
- NAICS Code
- 3359323110
Dimensions13.188 in x 3.125 in x 4.75 in
ColorGray
Height4.75 in
Length13.188 in
TypeMogul Conduit Body With Cover & Gasket
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging3.42
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.840 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
