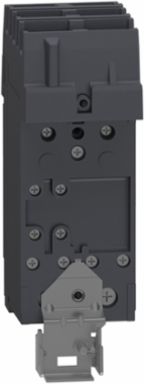

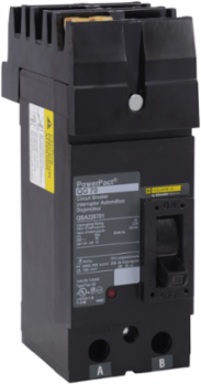

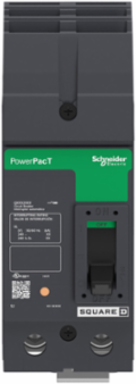

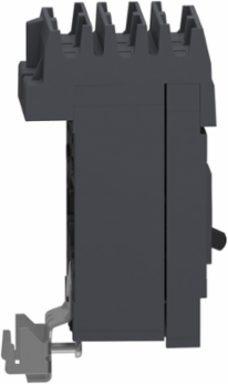

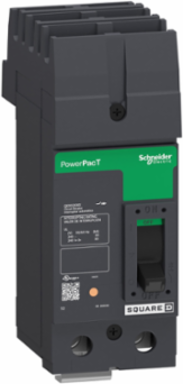

Square D QBA220704 Circuit breaker, PowerPacT Q, 70A, 2 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, BC
Square D QBA220704 Circuit breaker, PowerPacT Q, 70A, 2 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, BC
- MPN: QBA220704
- UPC: 785901602026
- PPN: SCH-QBA220704
- UNSPSC: 39121616
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1135.40/ EA
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 70A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Confidence and power reliability
- UL 489 Listed, CSA, ANCE, IEC certified
Specifications
Physical Attributes
- Wire Stripping Length
- 22 mm
Conformance Attributes
- Product Certifications
- UL, CSA, NOM
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000
Complementary Attributes
- Line Rated Current
- 70-70 A
Important Information Attributes
- Electrical Connection
- I-Line connection, line, lugs, load
- Carbon Footprint Of The Distribution Phase A4
- 0.6227682622165882, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.41629631278000545, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 13 kg CO2 eq., 13.043154949771642
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Energy Efficiency Optimized
- False
- Local Signalling
- 1 trip indicator green)
- Magnetic Tripping Current
- 1800-1800 A
- Mounting Support
- bracket
- Package Weight Lbs
- 2.155 kg
- Poles Description
- 2P
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Trip Unit Technology
- thermal-magnetic
- Ue Rated Operational Voltage2
- 240 V AC 50/60 Hz UL
- Medium Desc
- Circuit breaker, PowerPacT Q, 70A, 2 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, BC
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 240 V AC 50/60 Hz UL
Mechanical Durability1000 cycles loaded, 5000 cycles no load
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.637202744852967
Carbon Footprint Of The Manufacturing Phase A1 To A315 kg CO2 eq., 14.769180709888461
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Continuous Current Rating80 %
Device Applicationdistribution
Halogen Free StatusHalogen free product
Magnetic Hold Current1000 A
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Phase ConnectionBC
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerPact
Sustainable PackagingNo
Total Lifecycle Carbon Footprint32 kg CO2 eq.
Utilisation Categorycategory A
Uimp Rated Impulse Withstand Voltage28 kV UL
Stocking FlagY
Pep CodeENVPEP2311048_V2
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2[A5]
Energy Model End Of Life C1 C4 2[C1 - C4]
Product NamePowerPact Q
Uimp Rated Impulse Withstand Voltage58 kV UL
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40-70 °C
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2311048_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint32.488602979509665
Environmental DisclosureENVPEP2311048_V2
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 3.93 in
