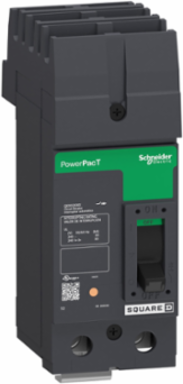

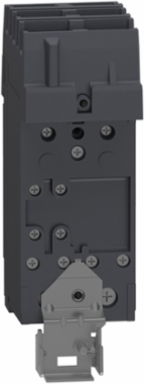

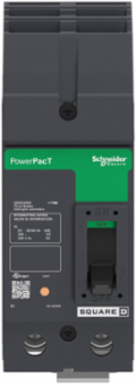

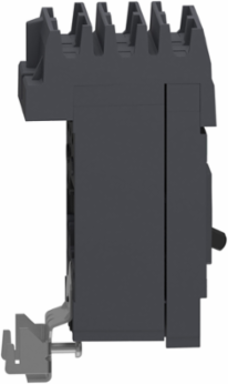

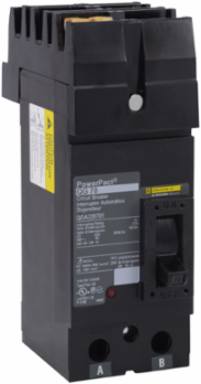

Square D QDA220704 Circuit breaker, PowerPacT Q, 70A, 2 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, BC
- MPN: QDA220704
- UPC: 785901832300
- PPN: SCH-QDA220704
- UNSPSC: 39121616
CAD
$2407.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 70A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Confidence and power reliability
- UL 489 Listed, CSA, ANCE, IEC certified
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada, Mexico |
|---|---|
| Depth | 3.93 in |
| Weight | 2165 g |
|---|
Physical Attributes
| Wire Stripping Length | 22 mm |
|---|
Complementary Attributes
| Line Rated Current | 70-, 70 A |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 8 kV UL |
| Ue Rated Operational Voltage | 240 V AC 50/60 Hz UL |
|---|
Important Information Attributes
| Certificate Agency | UL, CSA, NOM |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 4 kg CO2 eq., 3.6540807158267627 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 15 kg CO2 eq., 14.837715191140845 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Circuit Breaker Application | HACR rated |
| Control Type | operating handle |
| Electrical Connection | I-Line connection, linelugs, load |
| Magnetic Hold Current | 1000 A |
| Mechanical Durability | 1000 cycles loaded5000 cycles no load |
| Mounting Support | bracket |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 33 kg CO2 eq. |
| Utilisation Category | category A |
| Data Source | extrapolated product |
| Width Nominal | 3.00 in |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Carbon Footprint Of The Distribution Phase A4 | 0.6256581381433473, 0.6 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.41822808221285934, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 kg CO2 eq., 13.043154949771642 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Local Signalling | 1 trip indicator green) |
| Magnetic Tripping Current | 1800-1800 A |
| Mounting Mode | I-Line bracket) |
| Network Frequency | 50/60 Hz |
| Phase Connection | BC |
| Product Name | PowerPact Q |
| Range | PowerPact |
| Software Version | v6.2.5-6 |
| Tightening Torque | 28-28 N.m 25-150 mm² (4 AWG...300 kcmil) |
| Trip Unit Technology | thermal-magnetic |
| Database Version | 2024-01 |
| Height Nominal | 6.47 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 56 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40-70 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-07-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 32.57883707709546 |
| Environmental Disclosure | ENVPEP2311048_V2 |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2311048_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
