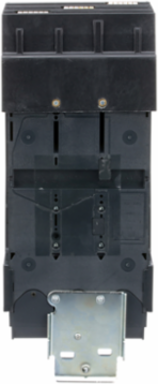

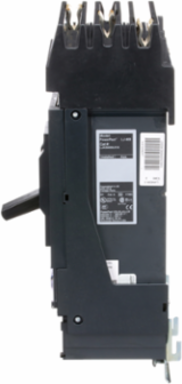

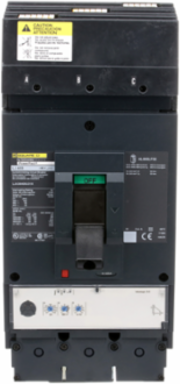

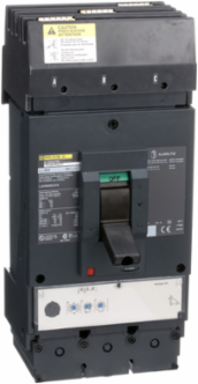

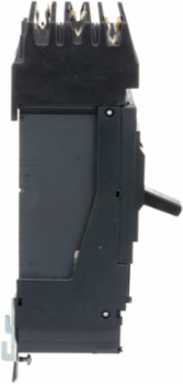

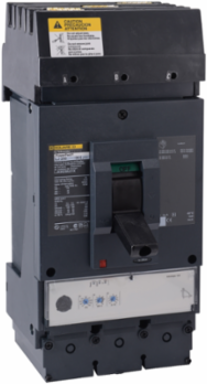

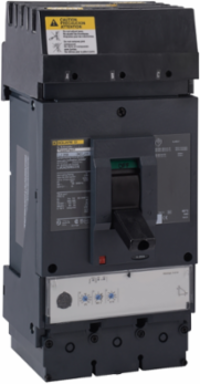

Square D LJA36400U31X PowerPact L Circuit Breaker, 400A, 3-Pole, 600V, 25kA, MicroLogic 3.3
Square D LJA36400U31X PowerPact L Circuit Breaker, 400A, 3-Pole, 600V, 25kA, MicroLogic 3.3
- MPN: LJA36400U31X
- UPC: 785901648550
- PPN: SCH-LJA36400U31X
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. They can be combined with the front display module (FDM121) to provide functions similar to a power meter. This PowerPact L, 3-pole, I-Line circuit breaker has a rated current of 250A. This Breaker has a breaking capacitty of 25kA@600VAC rated operational voltage. This breaker features a Micrologic 3.2 electronic trip unit. This breaker complies to UL listed, CSA, CCC, CE & NMX certifications. The dimensions are 14.7 in (H),5.94 in (W),6.61 in (D).
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206029EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206029EN
Complementary
- Mounting Mode
- I-Line bracket)
- Terminal Identifier
- AL600LF52K3
- Trip Unit Technology
- electronic, standard, MicroLogic 3.3, LI
- Height
- 340 mm
- Tightening Torque
- 50-50 N.m 95-240 mm² AWG 3/0...500 kcmil)
- Breaking Capacity Code
- J
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection
- I-Line connection, line || lugs, load
- Net Weight
- 6.2 kg
- Control Type
- toggle
- Wire Stripping Length
- 31 mm
- Utilisation Category
- category A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Awg Gauge
- AWG 3/0...500 kcmil aluminum/copper
- Width
- 140 mm
- Phase Connection
- ABC
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 3.3
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
Mounting Supportbracket
Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Protection Technologycurrent limiter
Mounting Height6 in
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Circuit Breaker ApplicationHACR rated
[In] Rated Current400-400 A
Long Time Pick-Up Adjustment Range0.25...1 x In
Breaking Capacity100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Suitability For Isolationyes IEC 60947-2
Poles Description3P
Colourblack
Depth110 mm
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- L-Frame
Product NamePowerPact L
Device Applicationdistribution
