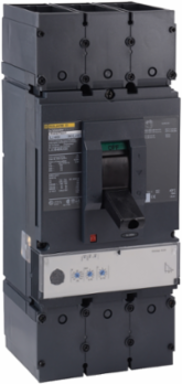

Square D LJL36400U33X PowerPact L Circuit Breaker, 400A, 3 Pole, 600VAC, 25kA, MicroLogic 3.3S
- MPN: LJL36400U33X
- UPC: 785901303794
- PPN: SCH-LJL36400U33X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth110 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 31 mm, 61 mm
ColorBlack
Complementary Attributes
- Line Rated Current
- 400-400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
- [Ics] Rated Service Breaking Capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 10 kg CO2 eq., 10.296914141921746
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 44 kg CO2 eq., 43.803039020060005
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206029_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2543
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- toggle
- Device Short Name
- L-Frame
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL600LS52K3
- Total Lifecycle Carbon Footprint
- 1 160 kg CO2 eq.
- Trip Unit Technology
- electronic, standard, MicroLogic 3.3 S, LSI
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 58
- Width Nominal
- 140 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 7.99 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Signallingready 1 LED green), alarm 1 LED 90 % Ir orange)alarm LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]1.9651156301961943, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.895675366222579, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 102 kg CO2 eq., 1102.068743555505
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge2 x 2/0 AWG...500 kcmil aluminium/copper
Continuous Current Rating80 %
Device Applicationdistribution
Energy Efficiency OptimizedFalse
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact L
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingNo
Tightening Torque50-50 N.m 70-240 mm² (2/0 AWG...500 kcmil)
Trip Unit NameMicroLogic 3.3 S
Utilisation Categorycategory A
Pep CodeENVPEP2206029EN
Pep Verification Date2025-06-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal340 mm
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint1160.0294877139056
Environmental DisclosureENVPEP2206029EN
Ip Degree Of Protectionfront cover IP40
