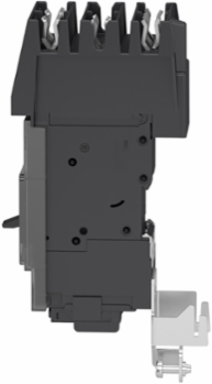

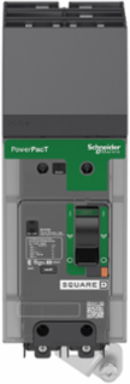

Square D BGA24060Y1 Circuit breaker, PowerPacT B, 60A, 2 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, AB
- MPN: BGA24060Y1
- UPC: 785901458203
- PPN: SCH-BGA24060Y1
- UNSPSC: 39121601
CAD
$1598.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 2 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BG 060
Product NamePowerPact B
Device Applicationdistribution
Complementary
- Mounting Mode
- I-Line
- [Ics] Rated Service Breaking Capacity
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Height
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Breaking Capacity Code
- G
- Local Signalling
- presence of auxiliary contacts flag green)
- Electrical Connection
- I-Line connection, line || lugs, load
- Net Weight
- 0.952 kg
- Control Type
- toggle
- Wire Stripping Length
- 20 mm
- Utilisation Category
- category A
- Breaking Capacity
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
- Mechanical Durability
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Quantity Per Set
- set of 1
- Color
- Gray RAL 7016)
- Depth
- 89 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magnetic
Connection Pitch27 mm
Tightening Torque3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
9 Mm Pitches6
Number Of Slots1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Mounting Height76.2 mm
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Circuit Breaker ApplicationHACR rated
Line Rated Current60-60 A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Suitability For Isolationyes IEC 60947-2
Poles Description2P
Awg GaugeAWG 14...AWG 2/0 aluminium/copper
Width54 mm
Phase ConnectionAB
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Environment
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Standards
- NMX J-266 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || UL 489 || GB 14048.2 || NEMA AB1
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
