Schneider Electric LV426843 Standard MX Shunt Trip Release, 110/130V AC & 125V DC, Quick Install

MPN: LV426843
PPN: SCH-LV426843

$954.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

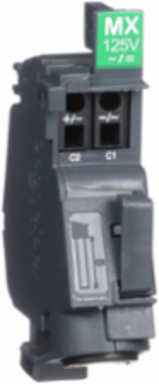

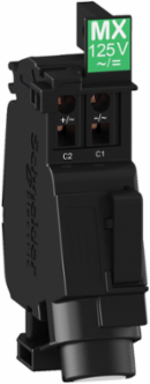

This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Argentina, Brazil, France, United States

Complementary Attributes

Impulse Duration	>= 20 ms, >= 20 ms

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Signal Type	impulse, maintained
Carbon Footprint Of The Distribution Phase [A4]	0.0047076923076923086, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.019368000000000003, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.00034253
Local Publishable Date	2026-03-26
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311043EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1824
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Auxiliary Connection Terminal	spring
Device Application	control
Energy Efficiency Optimized	False
Product Or Component Type	voltage release
Range Of Product	ComPacT NSXm
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Control Circuit Voltage 4	125 V
Control Circuit Voltage 4 Control Circuit Voltage	125 V
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	33
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	36.0 g
Take-back	No
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	41.496
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-0.2151

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Voltage Release Type	opening coil, shunt trip release
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.054900000000000004
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.9 kg CO2 eq., 0.9315692307692309
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	standard
Device Short Name	MX
Product Availability	Stock - Normally stocked in distribution facility
Range	ComPact
Response Time	< 50 ms< 50 ms
Software Version	v5.9.4
Threshold Tripping Voltage	0.7 Un opening
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit Type	DC
Pep Code	ENVPEP2311043EN
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage	110...130 V AC 50/60 Hz125 V DC
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-0.7518
Customs Code	8504508000
