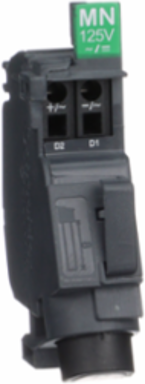

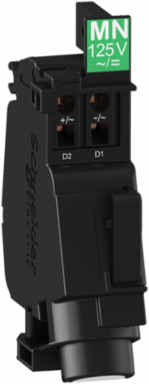

Schneider Electric LV426803 ComPacT NSXm MN Undervoltage Release 110/130VAC 50/60Hz 125VDC
- MPN: LV426803
- PPN: SCH-LV426803
CAD
$954.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 110/130 VAC 50/60 Hz or 125 VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, France, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Voltage Release Type
- opening coil, undervoltage release
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.10678222222222222
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.73
- Local Data Status
- Publishable
- Return Indicator
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 251.33
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311042EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1824
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Auxiliary Connection Terminal
- spring
- Device Application
- control
- Energy Efficiency Optimized
- False
- Product Or Component Type
- voltage release
- Range Of Product
- ComPacT NSXm
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 252 kg CO2 eq.
- Control Circuit Voltage 4
- 125 V
- Control Circuit Voltage 4 Control Circuit Voltage
- 125 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To trip the circuit breaker when the control voltage drops below 35% of its rated voltage.& 10Between 35% and 70% of the rated voltage opening is possible but not ensured.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 613.2
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Uc] Control Circuit Voltage
- 110...130 V AC 50/60 Hz125 V DC
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 251
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 0.73
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 6403.1
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 5.0007
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 0.0924
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 2.4482
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 7632.7
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 6403.1
- Water Use (M3 Eq) Operational Energy Use [B6]
- 8.8931
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.008369066666666666, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02840533333333333, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]251 kg CO2 eq., 251.33
Local Publishable Date2025-08-13
Stocking FlagN
TraceabilityNo
Manufacturing Carbon Footprint0.73
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typestandard
Device Short NameMN
Product AvailabilityStock - Normally stocked in distribution facility
RangeComPact
Response Time< 50 ms< 50 ms
Software Versionv5.9.4
Threshold Tripping Voltage0.35...0.7 x Un opening0.85 x Un closing
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit TypeDC
Pep CodeENVPEP2311042EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %32
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)64 g
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]1.4341
Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]0.1048
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]251.33
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2706.6
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]373.69
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]36.161
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]11.592
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1229.6
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1229.6
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 252.20355662222224
- Environmental Disclosure
- ENVPEP2311042EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311042EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2311042EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- voltage release
Range Of ProductComPacT NSXm
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
