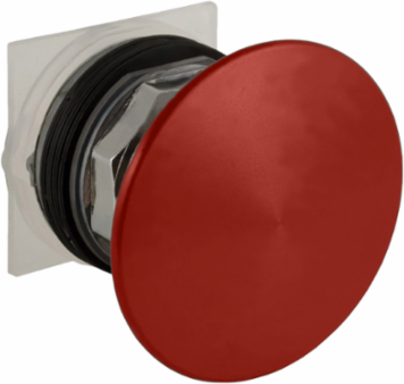

Square D 9001KR25RM Push-button head, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, spring return
Square D 9001KR25RM Push-button head, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, spring return
- MPN: 9001KR25RM
- UPC: 785901685869
- PPN: SCH-9001KR25RM
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$131.77/ EA
Description
Push-button head, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, spring return
Specifications
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
StandardsIEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Contacts Type And Composition
- without contact block
- Bezel Material
- metal
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Head Material
- metal
- Cad Overall Depth
- 70 mm
- Size
- 30 mm
- Device Presentation
- basic element
Operator Additional Informationscrew-on metal with set screw
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 60 mm
Operating Positionany position
Cap/Operator Or Lens Colourred
Cad Overall Width60 mm
Net Weight0.15 kg
Cad Overall Height60 mm
Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- spring return
- Product Compatibility
- contact block 9001KA..
Operator Profilered mushroom Ø 60 mm, unmarked
Product Or Component Typehead for push-button
Device Short Name9001K
