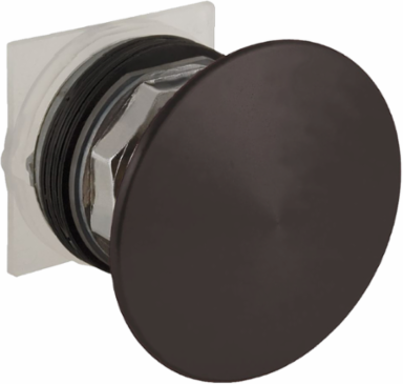

Schneider Electric 9001KR25BM Harmony 9001K Metal Push-button Head, 60mm Mushroom, 30mm Spring Return

MPN: 9001KR25BM
UPC: 785901610779
PPN: SCH-9001KR25BM
UNSPSC: 39122216

$131.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This metal push-button head from Schneider Electric's Harmony 9001K series features a 60mm mushroom design combined with a 30mm spring return mechanism, making it an efficient choice for various industrial applications. Crafted for durability and reliability, it is specifically designed to seamlessly integrate into automation and control systems, ensuring user-friendly operation in demanding environments. The push-button head stands out for its ergonomic design and robust construction, suitable for both pilot devices and control panels where quick response and safety are essential. With its high-quality build, this push-button head not only enhances functionality but also contributes to the overall longevity of your control setups.

Features

Improves security thanks to finger-safe contact blocks and light modules
Single screw Contact Block Fastening
Large metal set of accessories to customize your product
Automatic self-grounding operators without additional wiring

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Physical Attributes

Cad Overall Depth	70 mm
Cad Overall Width	60 mm

Cad Overall Height	60 mm
Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	mushroom Ø 60 mm, black mushroom Ø 60 mm, unmarked
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Device Short Name	9001K
Mechanical Durability	5000000 cycles
Operating Position	any position
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for push-button
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
Sustainable Packaging	Yes
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Cap/Operator Or Lens Colour	black
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, UL 508
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Contacts Type And Composition	without contact block
Head Material	metal
Mounting Diameter	30 mm
Operator Additional Information	screw-on metal with set screw
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	contact block 9001KA..
Pep Code	ENVPEP2503027EN
