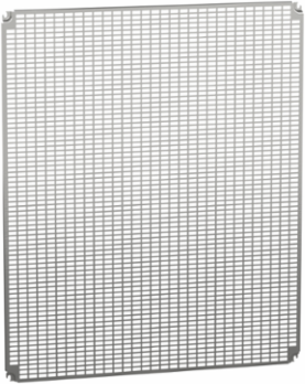

Schneider Electric NSYMR1210 Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
Schneider Electric NSYMR1210 Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
- MPN: NSYMR1210
- PPN: SCH-NSYMR1210
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$534.37/ EA
Description
Monobloc perforated plates H1200xW1000mm with universal perforations 11x26mm
Specifications
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Enclosure Nominal Dimensions
- H: 1200 mm W: 1000 mm
- Material
- steel
- Surface Finish
- zinc coated
- Product Or Component Type
- mounting plate
- Mounting Plate Description
- Telequick perforated
- Mounting Location
- direct fixing on backstuds || step slide
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Quantity Per Setset of 1
Device Applicationmulti-purpose
RangeSpacial
Complementary
- Surface And Useful Surface
- 108.9 dm²
- Number Of Slots
- 2325
- Height
- 1145 mm
- Variant Particularity
- installation in rear of enclosure
- Net Weight
- 7.8 kg
- Permanent Permissible Load
- 272.2 kg S3D, CRN, S3X enclosures || 163.3 kg PLM enclosure
Cut-Out Dimensions11 x 26 mm
Width951 mm
Maximum Load250 kg S3D, CRN, S3X enclosures || 150 kg PLM enclosure
Thickness2 mm
Fixing Modescrewed on backstuds M8 || by fixing element
Contractual warranty
- Warranty
- 18 months
