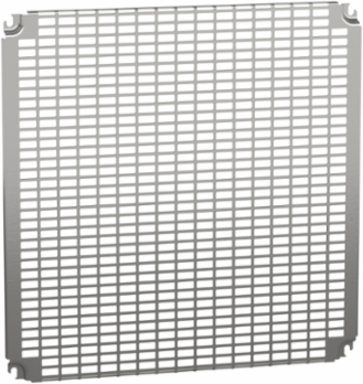

Schneider Electric NSYMR66 Monobloc Perforated Mounting Plate 600x600mm, Steel, 646 Slots, 2mm Thickness
- MPN: NSYMR66
- PPN: SCH-NSYMR66
CAD
$197.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is600 x W is600 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 646 slots. Variant particularity is Installation in rear of enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 600 mm W: 600 mm
- Material
- steel
- Surface Finish
- zinc coated
- Product Or Component Type
- mounting plate
- Mounting Plate Description
- Telequick perforated
- Mounting Location
- step slide || direct fixing on backstuds
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Quantity Per Setset of 1
Device Applicationmulti-purpose
RangeSpacial
Complementary
- Cut-Out Dimensions
- 11 x 26 mm
- Width
- 551 mm
- Variant Particularity
- installation in rear of enclosure
- Net Weight
- 2.46 kg
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Number Of Slots646
Height555 mm
Thickness2 mm
Depth15 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
