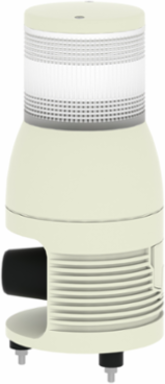

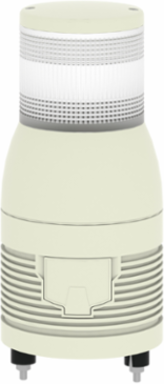

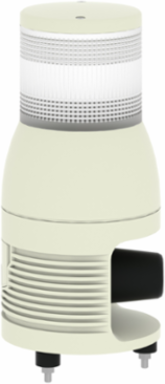

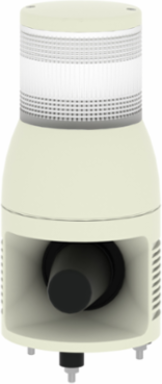

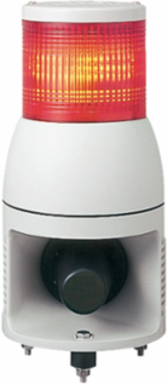

Schneider Electric XVC1B1HK Complete Pre-Wired Tower Light 100mm Red LED with Siren, 24V DC
- MPN: XVC1B1HK
- PPN: SCH-XVC1B1HK
CAD
$572.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XVC1 integral LED offers a steady 3 illuminated units, red, orange and green. The colors allows to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP54, making it ideal for operation in harsh environments
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVC1
- Light Source
- LED steady or flashing red
- Component Name
- XVC
- Noise Level
- 0-102 dB continuous or intermittent tone)1 m
- Supply Circuit Type
- DC
Mounting Diameter100 mm
Product Or Component Typecomplete pre-wired monolithic tower light
[Us] Rated Supply Voltage24 V
Beacon Or Indicator Bank Unit Type1 illuminated unit
Sound Signallingsiren
Complementary
- Height
- 293 mm
- Cable Length
- 500 mm
- Net Weight
- 1.58 kg
- Awg Gauge
- AWG 18 || AWG 22
- Cable Cross Section
- 0.83-0.83 mm² || 0.33-0.33 mm²
- Material
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
[Uimp] Rated Impulse Withstand Voltage0.8 kV
MarkingCE
Current Consumption460 mA
Flashing Frequency0.7-3 Hz
Product Mountingon base
Environment
- Product Certifications
- UL
- Standards
- IEC 61000-6-4 || IEC 61000-6-2 || IEC 61000-6-3
- Ambient Air Temperature For Storage
- -35-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP54 IEC 60529
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Circularity Profile
- ENVEOLI1904008EN
Mercury FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
