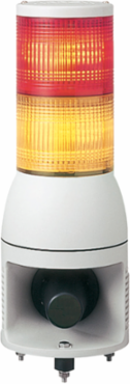

Schneider Electric XVC1B2HK Harmony XVC Monolithic Tower Light 100mm Red/Orange IP54 24V DC
- MPN: XVC1B2HK
- PPN: SCH-XVC1B2HK
CAD
$759.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Providing a reliable visual signal in various industrial applications, the Harmony XVC monolithic tower light from Schneider Electric stands out with its robust design and impressive functionality. Featuring a striking combination of red and orange colors, this 100mm tower light is engineered for effective indication, ensuring that critical information is easily visible in any environment. Rated IP54, it offers protection against dust and water, which makes it suitable for use in demanding conditions. Operating at 24V DC, this assembled indicator light is an excellent choice for enhancing automation and control systems, providing clear visual communication that is essential for safety and operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVC1
- Beacon Or Indicator Bank Unit Type
- 2 illuminated units
- Supply Circuit Type
- DC
- Product Or Component Type
- complete pre-wired monolithic tower light
- Sound Signalling
- siren
Noise Level0-102 dB continuous or intermittent tone)1 m
Mounting Diameter100 mm
Light SourceLED steady or flashing red || LED steady or flashing orange
Component NameXVC
[Us] Rated Supply Voltage24 V
Complementary
- Height
- 371 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- Cable Cross Section
- 0.33-0.33 mm² || 0.83-0.83 mm²
- Material
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
- Marking
- CE
- Current Consumption
- 550 mA
Awg GaugeAWG 18 || AWG 22
Flashing Frequency0.7-3 Hz
Product Mountingon base
Cable Length500 mm
Net Weight1.78 kg
Environment
- Product Certifications
- UL
- Ambient Air Temperature For Storage
- -35-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP54 IEC 60529
Ambient Air Temperature For Operation-20-50 °C
StandardsIEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
Circularity ProfileENVEOLI1904008EN
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
