Square D LGL36600M37X Motor circuit protector, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, Micrologic 1.3 M, 80%

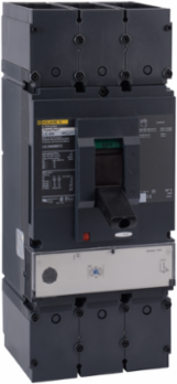

Motor circuit protector, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, Micrologic 1.3 M, 80%
  • MPN: LGL36600M37X
  • UPC: 785901564485
  • PPN: SCH-LGL36600M37X

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Motor circuit protector, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, Micrologic 1.3 M, 80%

Specifications

Environment

Ambient Air Temperature For Operation
-25-70 °C
Product Certifications
UL || CSA || NOM
Pollution Degree
3 IEC 60947-1
Operating Altitude
< 2000 m without derating || 5000 m with derating
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2206029EN
Pvc Free
Yes
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206029EN

Complementary

Mounting Mode
unit mount lug)
Terminal Identifier
AL600LS52K3
Trip Unit Technology
electronic, standard, MicroLogic 1.3 M, I
Height
340 mm
Tightening Torque
50-50 N.m 70-240 mm² AWG 2/0...500 kcmil)
Breaking Capacity Code
G
Local Signalling
ready 1 LED green) || switched off (OFF) 1 trip indicator green)
Electrical Connection
lugs, line || lugs, load
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Circuit Breaker Application
HACR rated
[In] Rated Current
600-600 A
Breaking Capacity
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Suitability For Isolation
yes IEC 60947-2
Poles Description
3P
Colour
black
Depth
110 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 1.3 M
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
Mounting Supportlug
Magnetic Tripping Current500-1200 A
Protection Technologycurrent limiter
Net Weight6.2 kg
Control Typetoggle
Wire Stripping Length31 mm || 61 mm
Utilisation Categorycategory A
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus || Ethernet
Awg Gauge2 x AWG 2/0...500 kcmil aluminum/copper
Width140 mm

Specifications

Product Or Component Type
Motor Circuit Protector
Range
PowerPact
Device Short Name
