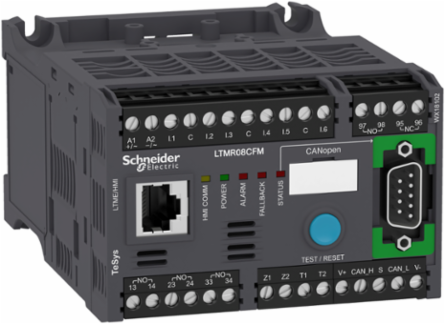

Schneider Electric LTMR08CFM TeSys T Motor Controller, 0.4-8A, 100-240VAC, CANopen
Schneider Electric LTMR08CFM TeSys T Motor Controller, 0.4-8A, 100-240VAC, CANopen
- MPN: LTMR08CFM
- PPN: SCH-LTMR08CFM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2178.12/ EA
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys T LTMR controller that measure current range of 0.4-8A with a supply voltage of 100-240 Vac and uses CANopen as the communication protocol. This controller measures temperature, phase current, imbalance current, average current and earth-fault current. The dimensions of this device are 61 mm (H) X 91 mm (W) X 122.5 mm (D) and it weighs 0.53 kg.
Specifications
Environment
- Product Certifications
- BV || GL || EAC || ATEX || KERI || CCC || ABS || C-Tick || CSA || DNV || UL || RMRoS || NOM || LROS (Lloyds register of shipping) || RINA
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- <= 2000 m without derating
- Ip Degree Of Protection
- IP20
Mechanical Robustnessvibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
StandardsIACS E10 || CSA C22.2 No 14 || UL 508 || EN 60947-4-1 || IEC 60947-4-1
Protective Treatment12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
Fire Resistance650 °C EN/IEC 60695-2-12 || 960 °C UL 94
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060308EN_V2
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100411EN_V2
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Contacts Type And Composition
- 1 NO + 1 NC fault signal || 3 NO
- Connection Pitch
- 5.08 mm
- Network And Machine Diagnosis Type
- event recording || trip history information || phase fault and earth fault trip counters || trip context information || waiting time after overload tripping || remaining operating time before overload tripping || running hours counter/operating time || motor control command recording || starting current and time || fault recording
- Logic Input Number
- 6
- Connections - Terminals
- control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
- Current State 1 Guaranteed
- logic input 79...264 V >= 2 mA 25 ms
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1
- Electromagnetic Compatibility
- electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 || temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
- Current State 0 Guaranteed
- logic input 0...40 V <= 15 mA 25 ms
- Short-Circuit Withstand
- 100 kA conforming to EN/IEC 60947-4-1
- Protection Type
- power factor variation || reverse polarity protection || thermal protection || phase failure || load fluctuation || overload || phase unbalance || thermal overload protection || overload (long time) || locked rotor || earth-leakage protection
- Width
- 91 mm
- Tightening Torque
- control circuit 0.5-0.6 N.m flat 3 mm
- Depth
- 122.5 mm
- Metering Type
- temperature || phase current I1, I2, I3 RMS || imbalance current || average current Iavg || earth-fault current
Height61 mm
Permissible Power480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Pollution Degree3
Maximum Operating Rate1800 cyc/h
Input Current3.1 mA 100 V || 7.5 mA 240 V
Net Weight0.53 kg
Associated Fuse Rating4 A gG output || 0.5 A gG control circuit
Measurement Accuracy5...15 % earth fault current internal measurement || 1 % voltage 100...830 V) || 3 % power factor || 5 % earth fault current external measurement || +/- 30 min/year internal clock || 0,02 temperature || 1 % current || 5 % active and reactive power
[Ui] Rated Insulation Voltage690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
Compatibility CodeLTMR
Web Servicesweb server
Load Current5 A 250 V AC logic output || 5 A 30 V DC logic output
Overvoltage CategoryIII
Maximum Operating Frequency2 Hz
Specifications
- Product Or Component Type
- motor controller
- Measurement Current
- 0.4-8 A
- Current Consumption
- 8...62.8 mA
- Communication Port Protocol
- CANopen
- Supply Voltage Limits
- 93.5-264 V AC
- Device Short Name
- LTMR
Product NameTeSys T
RangeTeSys
[Us] Rated Supply Voltage100...240 V AC 50/60 Hz
Bus TypeCANopen ISO 1198 1...127 10...1000 kbit/s, SUB-D 9 4 twisted shielded pairs cable || CANopen ISO 1198 1...127 10...1000 kbit/s, terminal block 4 twisted shielded pairs cable
Device Applicationequipment monitoring and control
