Schneider Electric NSYMP1412 PanelSeT Mounting Plate 1400x1200 mm, Galvanised Steel, 500 kg Load
Schneider Electric NSYMP1412 PanelSeT Mounting Plate 1400x1200 mm, Galvanised Steel, 500 kg Load
- MPN: NSYMP1412
- PPN: SCH-NSYMP1412
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$380.31/ EA
Description

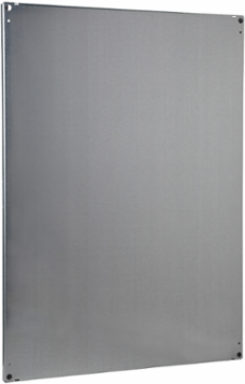

Spacial SF/SM mounting plate. H is1400 x W is1200 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.
Specifications
Complementary Attributes
- Maximum Load
- 300 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, 2 sliding shoes
- Permanent Permissible Load
- 500 kg intermediate position, 600 kg back of the enclosure
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 108 kg CO2 eq., 108.31267947662595
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 204 kg CO2 eq., 204.38292200747787
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Fixing Mode
- by fixing brackets
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 389 kg CO2 eq.
- Medium Desc
- PanelSeT SF/SM mounting plate - 1400x1200 mm
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1400 mm W: 1200 mm, - H: 1400 mm W: 1200 mm, - H: 1400 mm W: 1200 mm, - H: 1400 mm W: 1200 mm, - H: 1400 mm W: 1200 mm, - H: 1400 mm W: 1200 mm
Carbon Footprint Of The Distribution Phase A475.44226197730944, 75 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.2366122335407421, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-12-11
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Package Weight Lbs38.000 kg
Product Or Component Typemounting plate
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP2202003EN
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 389.374475694954
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 55.12 in
- Depth
- 27 mm
Width47.24 in
