Schneider Electric NSYMP1816 PanelSeT SF/SM 1800x1600 mm Mounting Plate, Galvanised Steel, Max Load 600 kg
- MPN: NSYMP1816
- PPN: SCH-NSYMP1816
CAD
$690.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

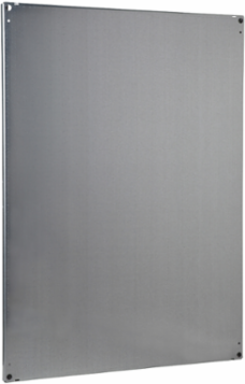

Spacial SF/SM galvanized mounting plate. 1799 x 1600 mm. Max. load is 600 kg if positioned in the back, 500 kg if in intermediate position of enclosure. Equipped with a perimeter reinforcement rib. Galvanised steel. 2 sliding shoes included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 62.99 in
Height70.87 in
Depth27 mm
Complementary Attributes
- Maximum Load
- 300 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, 2 sliding shoes
- Permanent Permissible Load
- 500 kg intermediate position, 600 kg back of the enclosure
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 175 kg CO2 eq., 174.72545399782027
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 330 kg CO2 eq., 329.7019241857472
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- fixing centers: 1650 mm
- Width Nominal
- fixing centers: 1450 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1800 mm W: 1600 mm, - H: 1800 mm W: 1600 mm, - H: 1800 mm W: 1600 mm, - H: 1800 mm W: 1600 mm, - H: 1800 mm W: 1600 mm, - H: 1800 mm W: 1600 mm
Carbon Footprint Of The Distribution Phase A4121.70028050550181, 122 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.9948507872644077, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby fixing brackets
Mounting Plate Descriptionplain
Product Or Component Typemounting plate
RangePanelSeT
Software Versionv6.1
Total Lifecycle Carbon Footprint628 kg CO2 eq.
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %98
Height Usefulnominal: 1800 mm
Width Realnominal: 1600 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 628.1225094763337
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
