Thomas & Betts J5-26662-25 Multi-Point Junction - 5 Points
- MPN: J5-26662-25
- UPC: 783786977802
- PPN: T-B-J5-26662-25
CAD
$2557.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

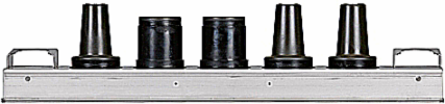

5 Point Junction, with one 200 Amp Deepwell Interfaces, three 600 Amp Bushing Interfaces and one 200 Amp Deepwell Interface, 25kV, No Tilt Mounting.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 26121630 Cable accessories
- Brand Name
- Elastimold
- Special Features
- 4 inch Center Spacing.
- Standard
- ANSI/IEEE Standard 386
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Mounting
- No Tilt Mounting Bracket.
IGCC1779 Cable accessories
TypeMulti-Point Junction - 5 Points
ApplicationSuited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
SizeOverall Length 27 inches, Width 6-3/4 inches.
Temperature Rating-40 to +65 Degrees C.
ConnectionPush-in
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
