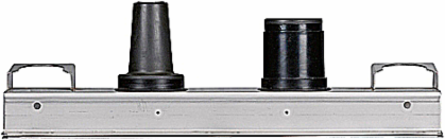

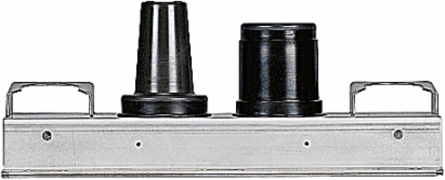

Thomas & Betts J2-26-15-SV Multi-Point Junction - 2 Points
- MPN: J2-26-15-SV
- UPC: 783786967605
- PPN: T-B-J2-26-15-SV
CAD
$1784.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2 Point Junction, 15kV, with one 200 Amp Deepwell Interface and one 600 Amp Bushing Interface, 6-1/2 inch centers. No Tilt Mounting.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 15.43 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 26121630 Cable accessories
- Brand Name
- Elastimold
- Special Features
- 6-1/2 inch Center Spacing.
- Standard
- ANSI/IEEE Standard 386
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Mounting
- No Tilt Mounting Bracket.
IGCC1779 Cable accessories
TypeMulti-Point Junction - 2 Points
ApplicationSuited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
SizeOverall Length 19-1/2 inches, Width 6-3/4 inches.
Temperature Rating-40 to +65 Degrees C.
ConnectionPush-in
