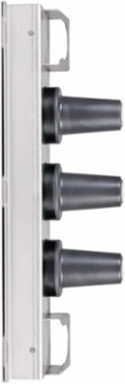

Thomas & Betts K650-J3-5 15/25KV 600A DB 3 PT JUNCTION OPT-5

MPN: K650-J3-5
UPC: 783786639298
PPN: T-B-K650-J3-5
UNSPSC: 26121630

$1570.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV 600 Series Deadbreak 3-Point Junction, Rubber Junction, Stainless Steel U-Straps and Back Plate.

Specifications

Additional Information

Application	Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
Connection Type	Push-In
Material	EPDM Rubber
Product Type	3-Point Rubber Junction
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold 600 Amp Series Elbow connectors. U-Style Mounting Straps Only.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Effective Date	19980108
Product Name	ELECTRICAL CONNECTOR,>1000V"
Size	5.87 inches (149. mm) Tall, 6.75 inch (171.5 mm) Wide, 19.00 inch (483.0 mm) Long, 4.00 inch (102 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 8.00 inch (203.0 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side.
Standards	ANSI/IEEE Standard 386.
