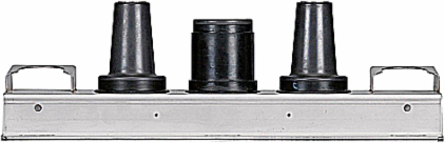

Thomas & Betts J3-266-25-N Multi-Point Junction - 3 Points
- MPN: J3-266-25-N
- UPC: 783786779116
- PPN: T-B-J3-266-25-N
CAD
$2332.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3 Point Junction, with one 200 Amp Deepwell Interface and two 600 Amp Bushing Interface, 25kV, No Parking Stand.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 26121630 Cable accessories
- Brand Name
- Elastimold
- Special Features
- 4 inch Center Spacing.
- Standard
- ANSI/IEEE Standard 386
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Mounting
- No Parking Stand.
IGCC1779 Cable accessories
TypeMulti-Point Junction - 3 Points
ApplicationSuited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
SizeOverall Length 19 inches, Width 6-3/4 inches.
Temperature Rating-40 to +65 Degrees C.
ConnectionPush-in
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
