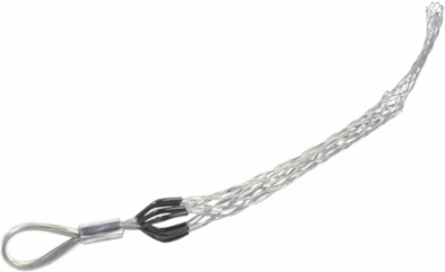

Pass & Seymour P3501 Multi-Weave Rotating Eye Pulling Grip, 3.500-3.990 Inch Diameter, 56 Inch Length, 1-7/8 Inch Eye Diameter, 48,000 lbs Break Strength, Light Green
- MPN: P3501
- UPC: 785007991994
- PPN: P-S-P3501
CAD
$403.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Multi-Weave Rotating Eye Pulling Grip, 3.500-3.990 Inch Diameter, 56 Inch Length, 1-7/8 Inch Eye Diameter, 48,000 lbs Break Strength, Light Green
Features
- Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables.
- These grips are used in applications such as distribution line stringing and overhead transmission.
- Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel.
- Description : Rotating Eye: The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension.
- The rotating eye can turn to relieve pulling torque when tension is relaxed.
- Mesh Length: 56: Eye Diamater: 1-7/8
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Type
- Pulling Grip
- Indoor/Outdoor
- Both
- Maximum Cable Range
- 3.5 in
- Application Sector
- Industrial
- Approximate Break Strength
- 43000.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Support and Strain Relief Grips, Various Types of Pulling
Product LinePass & Seymour
Eye StyleRotating
Mesh Length76.0 in
Minimum Cable Range3.99 in
Cable Diameter Range3.50-4.00 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
Special FeaturesMulti-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables. These grips are used in applications such as distribution line stringing and overhead transmission. Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel. The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension. The rotating eye can turn to relieve pulling torque when tension is relaxed.
