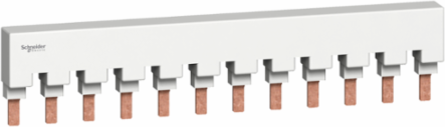

Schneider Electric M9XUP212 Multi9 Comb Busbar 2L 18 mm Pitch 12 Modules 115A

MPN: M9XUP212
PPN: SCH-M9XUP212
UNSPSC: 39121117

$111.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Multi9 Comb Busbar from Schneider Electric is engineered for efficient power distribution in electrical systems. With a compact design featuring an 18 mm pitch and the capacity to accommodate up to 12 modules, this busbar is ideal for managing circuit breakers within limited space. With a rating of 115A, it ensures reliable connectivity and performance, making it a key component for any power distribution setup. Whether for commercial or industrial applications, this busbar streamlines electrical installations while enhancing safety and operational efficiency.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	North Macedonia

Weight	147 g

Physical Attributes

Color	Light gray RAL 7035)

Complementary Attributes

Ie Rated Operational Current	115 A 40 °C
Ui Rated Insulation Voltage	1000 V AC 50/60 Hz UL 508

Ue Rated Operational Voltage	480 V AC 50/60 Hz Ph/Ph277 V AC 50/60 Hz Ph/N

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Carbon Footprint Of The Distribution Phase A4	0.028578533299235265, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0019831124185669376, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 kg CO2 eq., 1.749877384889777
Local Publishable Date	2025-07-09
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Connector Type	tooth
Distribution Type	L1 L2
Fire Resistance	960 °C 30 s ) IEC 60695-2-1
Lines Description	2L
Mounting Mode	horizontal
Poles Configuration For 1 Way	1 x 2P
Product Or Component Type	comb busbar
Returnability	Yes
Sustainable Packaging	No
Total Number Of 18 Mm Modules	12
Total Nb Of Modules 18 Mm	12
Data Source	extrapolated product
Certificate Agency	cULus
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	67

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3 kg CO2 eq., 0.30932269479443925
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.7 kg CO2 eq., 0.7169691589481719
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1922
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Connection Pitch	18 mm
Distance Between Way	36 mm
Energy Efficiency Optimized	False
Insulation	insulated
Mounting Location	top tunnel type terminals
Number Of Ways	6 ways 2 L
Product Availability	Stock - Normally stocked in distribution facility
Range	Multi9
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Width Nominal	216 mm
Accessory / Separate Part Category	connection accessory
Customs Code	8536904000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Carbon Footprint	2.8067308843501904
Environmental Disclosure	ENVPEP2503006EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-04-01
Psr Version	PSR-0005-ed3-2023 06 06

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
9 Mm Pitches	24
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20 with end-pieces and tooth covers
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2503006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
